Ziton ZP1 8 Zone Conventional Fire Control Panel (ZP1-F8-03)
Discontinued
Alternative Products
Product Details for Ziton ZP1 8 Zone Conventional Fire Control Panel (ZP1-F8-03)

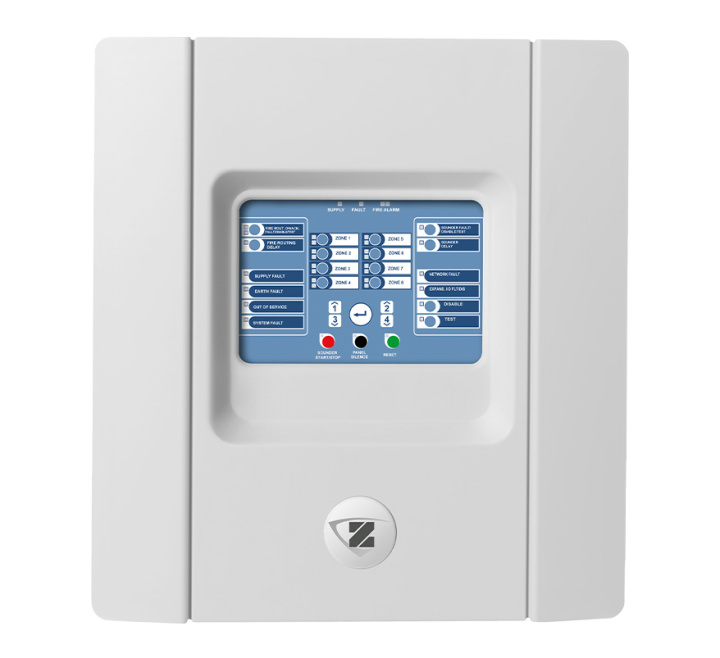

The Ziton ZP1-F8-03 is a conventional fire alarm control panel. It is supplied in local language with 8 zones that support up to 32 devices per zone, as well as up to 4 supervised relay outputs dedicated to sounder control and fire routing. In addition 2 conventional relay outputs dedicated to common fire and fault conditions, as well as two user configurable inputs for monitoring and control are available.
The panels support 2 types of auxiliary relay boards, one with 4 standard relays, and one with 4 supervised relays. With these boards the panel outputs may be expanded with up to 16 additional outputs.
Ziton ZP1 fire control panels offer state of the art architecture in configurations that deliver an uncomplicated solution for small to mid-sized conventional applications. They feature an attractive contemporary design that fits with any decor. The gently curved door front offers a distinctive flair. Operator controls are inset in a striking blue lexan.
With support for multiple lines of conventional detectors and accessories, these quick-to-configure systems offer versatility that benefits building owners and installation/maintenance companies alike.
Key Features of the ZP1-F8-03 |
|---|
|
> Modern, elegant design
> Easy removable parts for quick and clean installation > Default regional setup modes > Normal, head-out & intrinsically safe zone support > Supervised alarm notification outputs > EN54 compliant potential free fire & fault relays > Class change, day/night & remote reset facilities > Auxiliary 24VDC supply output with reset support > Default support for special functions such as: - EN54 compliant user access levels - mixed zones - full front panel diagnostics - one-man walk test > Auxiliary standard & supervised relay output boards > Networkable up to 64 zones |
| Brand | Ziton |
|---|---|
| Manufacturer Part No. | ZP1-F8-03 |
| Product Series | Ziton ZP1 |
| Primary Power Source | Mains Powered (230V) |
| System Type | Conventional |
| Number of Zones | 8 |
| Warranty | 2 Years |
FAQ’s for Ziton ZP1 8 Zone Conventional Fire Control Panel (ZP1-F8-03)
Product Specification for Ziton ZP1 8 Zone Conventional Fire Control Panel (ZP1-F8-03)
| Code: | ZP1-F8-03 |
| Description: | Ziton Conventional Fire Panel - 8 Zone |
| Dimensions: | W:440mm x H:480mm x D:140mm |
| Form factor: | Medium |
| Max. system capacity: | up to 2048 devices |
| Network size (nodes): | up to 8 |
| Operating voltage: | 110 VAC @ 50 Hz or 230 VAC @ 50 Hz (+10% -15%) |
| Current consumption: | 3.15 A @ 110/< 1.5 A @ 240 VAC |
| Max. loop capacity: | 8 |
| Zone: | Max. zone capacity: up to 8 Quantity of devices per zone: 32 max. |
| Standby battery: | 2 x 12V - 7.2 or 12 Ah (SLA) |
| Operating temperature: | -5 to +50°C |
| Storage temperature: | -20 to +70°C |
| Relative humidity: | 10 to 95% non-condensing |
| IP rating: | IP30, indoor |
| Regulatory: | CPD, RoHS, WEEE compliant EN54-13, EN54-2, EN54-4 certified |
| Input cable specification: | 3 x 1.5 mm² (live, neutral, earth) |
| Panel supply: | 4A @ 24 VDC Quiescent current (no devices): 80 mA Alarm current (no devices): 160 mA |
| Zones: | 8 Output voltage: 22 VDC (18-24 VDC) Load (max): 65 mA Cable resistance (max.): 40 ohm Cable capacitance (max.): 500 nF Devices per zone (max.): 32 |
| Inputs: | 2 Cable resistance (max.): 100 ohm |
| Supervised outputs: | 4 Output voltage: -15 to +28 VDC Load (max.): 500 mA |
| Non-supervised outputs: | 2 Load: 2 A @ 30 VDC |
| Auxiliary supply output: | Output voltage: 24 VDC (21 to 28 VDC) Load (max.): 250 mA @ 25°C / 195 mA @ 40°C |
| Colour: | Grey (RAL7035) |
| Mounting type: | Surface |
| Cable entries: | Ø 20 mm - 14 / 2 / 12 (Top/Bottom/Rear) |
| Weight: | 5kg (3.9kg without battery) |
