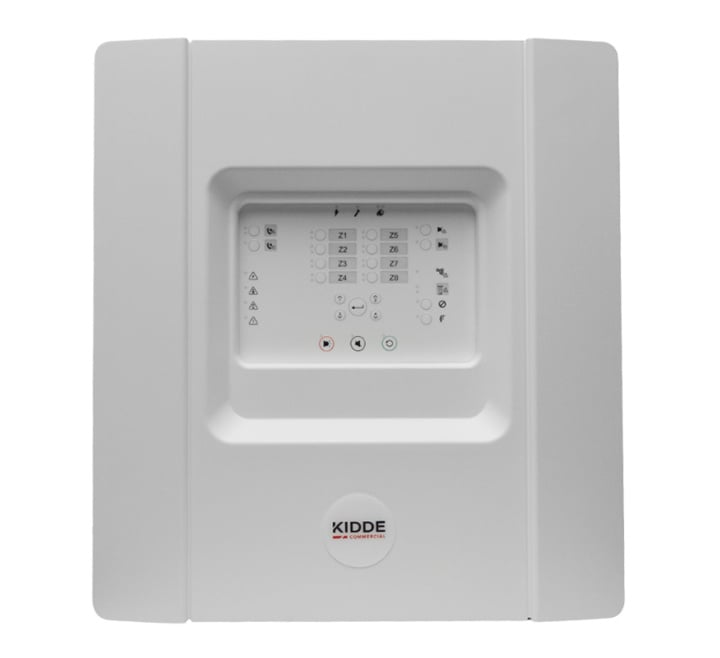

Kidde 8 Zone Conventional Fire Alarm Control Panel (NC-PF8)
Product Details for Kidde 8 Zone Conventional Fire Alarm Control Panel (NC-PF8)
The Kidde NC-PF8 is a conventional fire alarm control panel. It is supplied with 8 zones that support up to 32 devices per zone, as well as up to 4 supervised relay outputs dedicated to sounder control and fire routing. In addition 2 conventional relay outputs dedicated to common fire and fault conditions, as well as two user-configurable inputs for monitoring and control are available.
Panel Options
The panels support 2 types of auxiliary relay boards, one with 4 standard relays, and one with 4 supervised relays. With these boards the panel outputs may be expanded with up to 16 additional outputs.
Panel Overview
The New Conventional fire control panels offer state of the art architecture in configurations that deliver an uncomplicated solution for small to mid-sized conventional applications. With their clean and attractive contemporary design, they fits with any decor. The basic and intuitive user interface with icons make easy their application everywhere without an additional language kit required.
With support for multiple lines of conventional detectors and accessories, these quick-to-configure systems offer versatility that benefits building owners and installation/maintenance companies alike.
Key Features of the NC-PF8 |
|---|
|
> Modern, elegant design with basic and intuitive user interface with icons
> Easy removable parts for quick and clean installation > Default regional setup modes > Normal, head-out & intrinsically safe zone support > Supervised alarm notification & fire protection outputs > EN54 compliant potential free fire & fault relays > Class change, day/night, remote reset, extended fire routing delay & fire routing inhibit delay facilities > Auxiliary 24 VDC supply output with reset support > Default support for special functions such as: - EN54 compliant user access levels - mixed zones - full front panel diagnostics - one-man walk test - CleanMe™ > Auxiliary standard & supervised relay output boards > Networkable up to 64 zones > No language kit inserts required |
| Brand | Kidde Commercial |
|---|---|
| Manufacturer Part No. | NC-PF8 |
| Primary Power Source | Mains Powered (230V) |
| System Type | Conventional |
| Number of Zones | 8 |
| Colour | Grey |
| Warranty | 2 Years |
FAQ’s for Kidde 8 Zone Conventional Fire Alarm Control Panel (NC-PF8)
Product Specification for Kidde 8 Zone Conventional Fire Alarm Control Panel (NC-PF8)
| Code: | NC-PF8 |
| Description: | Kidde Commercial Conventional fire panel, 8 zone |
| Dimensions: | W:440mm x H:480mm x D:140mm |
| System capacity (device count): | up to 1280 |
| Network size (nodes): | up to 8 |
| Power supply type: | VAC |
| Power consumption: | 4 A @ 24 VDC |
| Operating voltage: | 110 VAC @ 50 Hz or 230 VAC @ 50 Hz (+10% -15%) Cable type: 3 x 1.5 mm² (live, neutral, earth) |
| Current consumption: | 3.15 A @ 110, <1.5A @ 240 VAC 160 mA (alarm, no devices) (panel supply) 80 mA (quiescent, no devices) (panel supply) |
| Max. loop capacity: | 8 |
| Zone capacity: | Up to 8 |
| Operating voltage: | 22 VDC (18 to 24 VDC) |
| No. of devices per zone: | 32 max. |
| Rating: | 65 mA max. load |
| Cable rating: | 40 ohm (max cable resistance), 500 nF (max cable capacitance) |
| Input quantity: | 2 |
| Input type / rating: | 100 ohm (max. cable resistance) |
| Supervisory voltage: | -15 to +28 VDC |
| Auxiliary power: | 24 VDC (21 - 28 VDC) output voltage |
| Supervised outputs: | 4 |
| Output load: | 500mA max. |
| Non supervised outputs: | 2 |
| Output load: | 2A @ 30VDC |
| Standby battery capacity: | 2 x 12 V, 7.2 or 12 Ah (SLA) |
| Colour: | Grey (RAL 7035) |
| Operating temperature: | -5°C to +50°C |
| Storage temperature: | -20°C to +70°C |
| Relative humidity (max.): | 0 - 95% RH (non condensing) |
| IP rating: | IP30 (indoor) |
| Compliancy/Certification: | CPD, RoHS, WEEE / EN54-2, EN54-4 |
| Auxiliary supply output: | 250mA @ @ 25°C / 195 mA @ 40°C (max. load) |
| Cable entries: | Ø 20 mm - 20 / 2 / 26 (top/bottom /rear) |
| Form factor: | Medium |
| Mounting: | Surface |
| Weight: | 6.184kg (shipping) 3.9kg (without battery) |
