Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.
Zeta Fyreye MKII Addressable Combined Smoke & Heat Detector (MKII-AOH)
SKU
MKII-AOH
Zeta Fyreye MKII Addressable Combined Smoke & Heat Detector (MKII-AOH)
Discontinued
Alternative Products
Product Details for Zeta Fyreye MKII Addressable Combined Smoke & Heat Detector (MKII-AOH)

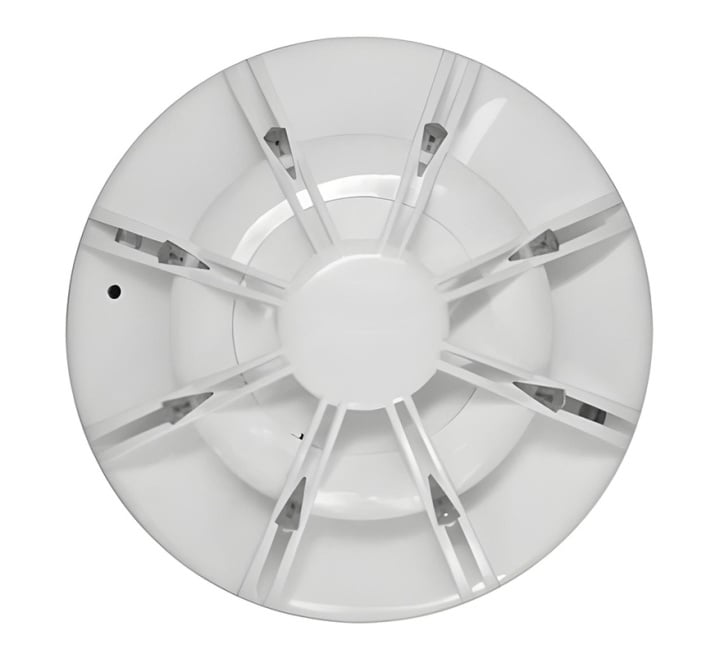

The Zeta Fyreye MKII Addressable Combined Smoke & Heat Detector (MKII-AOP) senses a quick rise in temperature and has a final threshold temperature of 57°C. It also uses a smoke sensing element to detect IR scatter caused by smoke entering the chamber. Efficient at detecting optically dense smoke involving materials such as soft furnishings, PVC, plastic, foam and similar materials that produce small visible particles (0.5 to 10μm).
Key Features of the MKII-AOH |
|---|
|
> Designed to meet EN54 requirement
> Lockable to base to prevent unauthorised removal > Remote LED output > 8 LEDs for 360° visibility > Compatible with all Fyreye MkII bases > Addressed with dip switches or hand-held programmer |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | MKII-AOH |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Warranty | 2 Years |
FAQ’s for Zeta Fyreye MKII Addressable Combined Smoke & Heat Detector (MKII-AOH)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Fyreye MKII Addressable Combined Smoke & Heat Detector (MKII-AOH)
| Product code: |
MKII-AOH |
| Description: | Zeta Fyreye MKII Addressable Combined Smoke & Heat Detector A1 |
| Dimensions: | Diameter: 100mm x D:59mm (with base) |
| Detector class: | Combined Smoke & Heat A1 |
| Operating voltage: | 17 to 28V DC |
| Quiescent current: | 500μA |
| Alarm current @ 24V DC: | 5mA |
| Alarm condition: | 0.09dB/m to 0.12dB/m Fixed heat trigger @ 57°C |
| Coverage: | 100m² |
| IP Rating: | IP43 |
| Start-up time: | 10 seconds |
| Remote output: | 5mA at 24VDC |
| Supply voltage: |
24V DC |
| System voltage: |
19 to 30V DC |
| Max. humidity: | 95% RH non-condensing |
| Min. continuous temp: | 0oC |
| Operating temperature: | -10 to +50oC |
| Standard: | EN54 parts 5 & 7 |
| Weight: | 75g (133g with base) |
