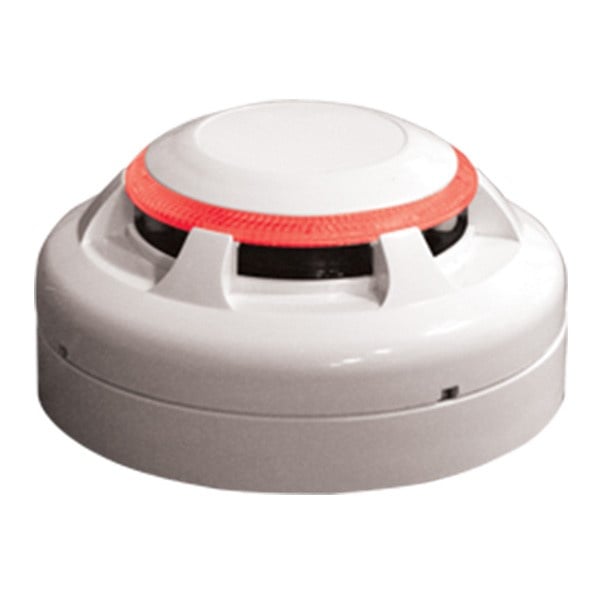

Nittan Sensortec Addressable Optical Smoke Detector (ST-PY-AS)
In Stock
Product Details for Nittan Sensortec Addressable Optical Smoke Detector (ST-PY-AS)
The Nittan Sensortec ST-PY-AS is an attractively-styled, low profile photoelectric sensor for use with Nittan ‘AS’ protocol control panels. Its aesthetically pleasing design enables it to blend unobtrusively into modern working environments.
The ST-PY-AS photoelectric sensor has two terminals for connection onto the two wire loop. The remaining terminal provides a switched current sink function which operates when the sensor goes into alarm condition, suitable for the operation of an auxiliary function such as a remote indicator. Terminal 3 (RIL) is limited to 2mA.
A variety of bases are available for use with the ST-PY-AS sensor. It is important to use the correct base for each application. The available base models are:
- UB-4 base: for standard use with ST-PY-AS series sensor.
- STB-4SE base: Similar to UB-4 base, except deeper
Base Sold Separately
MTM Programmer Sold Separately
Key Features of the ST-PY-AS |
|---|
|
> Low profile, stylish appearance
> EEPROM Addressing (Handheld Programmer) > Low monitoring current > Supplied with protective dust cover > Patented OMNIVIEW 360° LED fire alarm indicator > Remote indicator output > Compatible with UB-4 and STB-4SE bases > Polarised terminals > Optical sensor, detecting visible particles of combustion |
| Brand | Nittan |
|---|---|
| Manufacturer Part No. | ST-PY-AS |
| Product Series | Sensortec |
| Colour | White |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Nittan Sensortec |
| Detectable Medium | Smoke |
| Warranty | 3 Years |
| Sensor Type | Optical |
FAQ’s for Nittan Sensortec Addressable Optical Smoke Detector (ST-PY-AS)
Product Specification for Nittan Sensortec Addressable Optical Smoke Detector (ST-PY-AS)
| Manufacturer: | Nittan |
| Product Code: | ST-PY-AS |
| Protocol: | Nittan 'AS' Protocol |
| Sensor Method: | Light Scatter |
| Sensor Element: | IR LED and PhotoDiode |
| Operating Voltage: | 16V d.c to 28V d.c | System Voltage: | 24V d.c |
| Quiescent Current: | 500µA |
| Sensitivity: | 0.19 dB/m to 0.27dB/m |
| Alarm Current: | 5mA |
| Current for external remote LED indicator: | 2mA |
| Operating Temperature: | - 10°C to + 55°C,/td> |
| Storage Temperature: | - 20°C to + 60°C |
| Charging Time: | 20 Seconds |
| Relative Humidity | ≤RH95% non-condensing |
| I.P Protection Rating: | IP42 |
| Addressing Method: | Soft addressing, Non-Volatile EEPROM |
| Material: | ABS |
| Dimensions: | ∅104mm x 33mm (Sensor head) - ∅104mm x 48mm (Sensor head and STB-4) |
| Mass: | 105g (Sensor Head) - 170g (Sensor Head and STB-4 base) |
| EMC Conformance: | EN54-6:2000 |
| CE Conformity: | Yes |
| Standards / Certification: | EN54-7:2000 |
