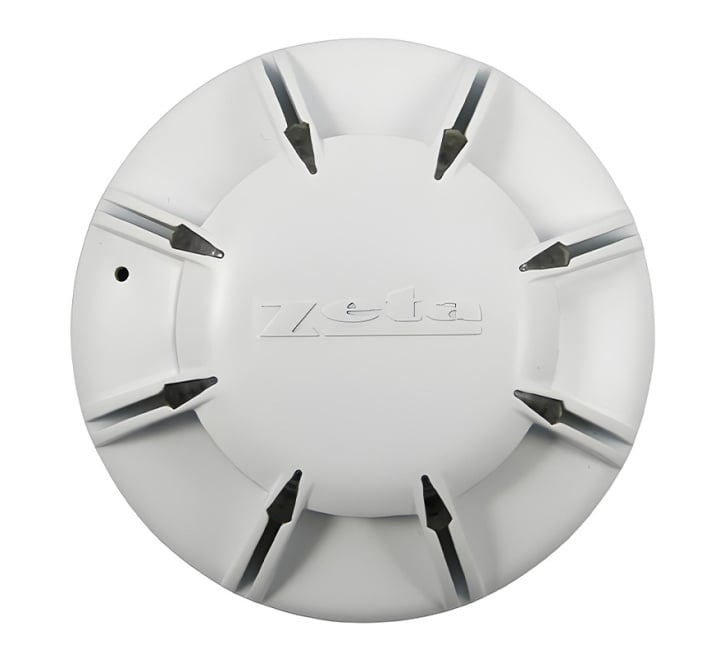

Zeta Fyreye MKII Addressable Optical Smoke Detector (MKII-AOP)
SKU
MKII-AOP
£28.67
£23.89
Zeta Fyreye MKII Addressable Optical Smoke Detector (MKII-AOP)
- Buy 10 for £27.79 £23.16 each and save 3%
- Buy 20 for £27.35 £22.79 each and save 5%
In Stock
Product Details for Zeta Fyreye MKII Addressable Optical Smoke Detector (MKII-AOP)
The Zeta Fyreye MKII Addressable Optical Smoke Detector (MKII-AOP) uses a pulsing IR LED and photodiode to detect IR scatter caused by smoke entering the chamber.
The detector is particularly suitable for detecting optically dense smoke, involving materials such as soft furnishings, PVC, plastic, foam and all similar materials which produce small visible particles (0.5 to 10μm).
Key Features of the MKII-AOP |
|---|
|
> Designed to meet EN54 requirement
> Lockable to base to prevent unauthorised removal > Remote LED output > 8 LEDs for 360° visibility > Compatible with all Fyreye MkII bases > Addressed with dip switches or hand-held programmer |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | MKII-AOP |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Fyreye MKII Addressable Optical Smoke Detector (MKII-AOP)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Fyreye MKII Addressable Optical Smoke Detector (MKII-AOP)
| Product code: |
MKII-AOP |
| Description: | Zeta Fyreye MKII Addressable Optical Smoke Detector |
| Dimensions: | Dia: 100mm x D:49mm (with base) |
| Detector class: | Optical Smoke |
| Operating voltage: | 17 to 28V DC |
| Quiescent current: | 500μA |
| Alarm current @ 24V DC: | 5mA |
| Alarm condition: | 0.09dB/m to 0.11dB/m |
| Coverage: | 100m² |
| IP Rating: | IP43 |
| Start-up time: | 10 seconds |
| Remote output: | 5mA at 24VDC |
| Supply voltage: |
24V DC |
| System voltage: |
19 to 30V DC |
| Max. humidity: | 95% RH non-condensing |
| Min. continuous temp: | 0oC |
| Operating temperature: | -10 to +50oC |
| Standard/Approval: | EN54 part 7 / LPCB approval |
| Weight: | 75g (133g with base) |
