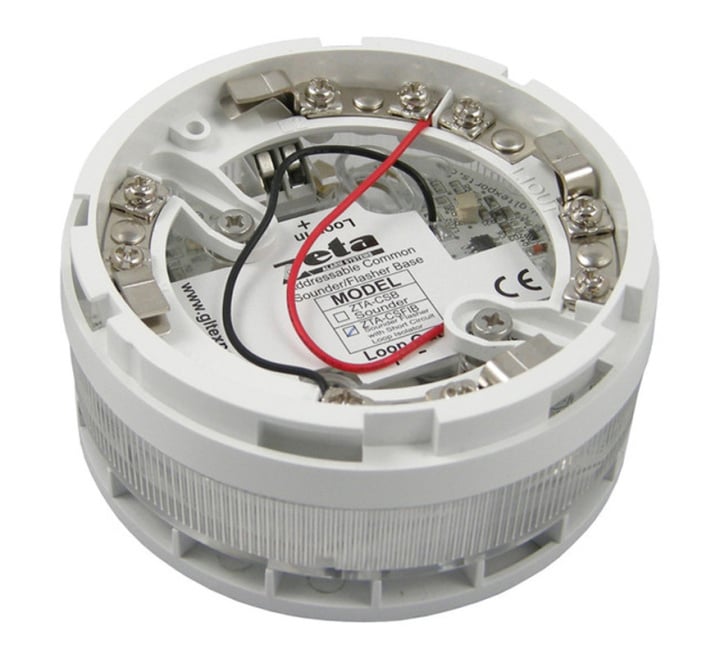

Zeta Fyreye MKI Addressable Common Sounder Beacon Base (ZTA-CSFIB)
SKU
ZTA-CSFIB
£104.83
£87.36
Zeta Fyreye MKI Addressable Common Sounder Beacon Base (ZTA-CSFIB)
- Buy 10 for £101.60 £84.67 each and save 3%
- Buy 20 for £100.00 £83.33 each and save 5%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Zeta Fyreye MKI Addressable Common Sounder Beacon Base (ZTA-CSFIB)
The Zeta ZTA-CSFIB MKI Addressable Common Combined Sounder & Flasher Base includes a loop short circuit isolator. This minimises the number of devices that would be inoperative in the event of a short circuit on the loop.
There is no volume adjustment potentiometer so the sounder supplied is set to its maximum volume. Although the sounder does not communicate with the control panel, it must be used in conjunction with an addressable detector. For monitoring purposes, the sounder is treated as a conventional sounder and monitored as part of the loop.
Key Features of the ZTA-CSFIB |
|---|
|
> Complies fully to EN-54 part 3
> Allows use of addressable detectors > Low current consumption (5.5 mA for combined Loop isolation option > Compatible with all Zeta addressable panels > No address to set > All sounder will start at the same time |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | ZTA-CSFIB |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKI |
| Colour | White |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Fyreye MKI Addressable Common Sounder Beacon Base (ZTA-CSFIB)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Fyreye MKI Addressable Common Sounder Beacon Base (ZTA-CSFIB)
| Product code: |
ZTA-CSFIB |
| Description: | Fyreye MKI Common Base Sounder Flasher Base |
| Size: | Dia:100mm x 36mm |
| Operating voltage: | 17 – 30V DC |
| Sound output: |
85 dB @ 1 metre |
| Alarm tone: | 800-970Hz (0.5s each) |
| Flasher colour: | Red |
| Flash rate: | 0.3Hz |
| Quiescent current: |
0.7mA |
| Alarm current: |
5.5mA |
| Weight: |
155g |
