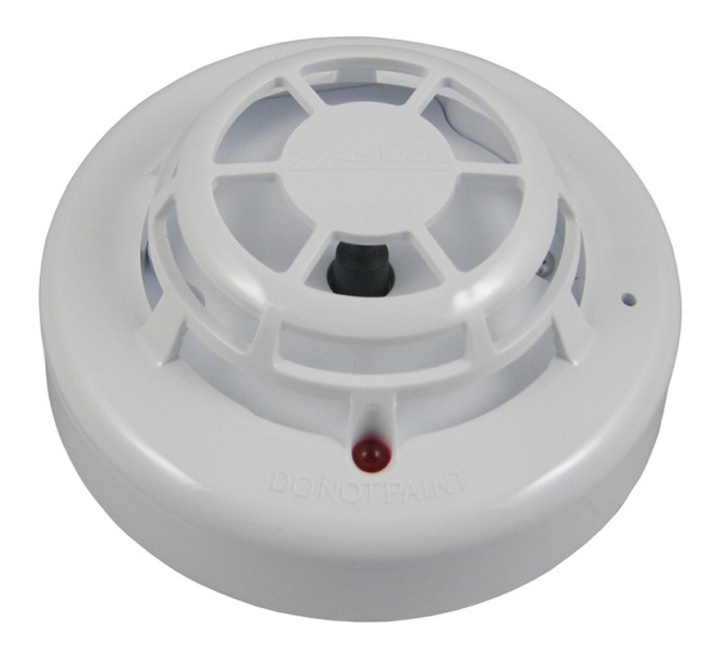

Zeta Fyreye MKI Addressable Heat Detector (FEAHE2000)
SKU
FEAHE2000
£43.26
£36.05
Zeta Fyreye MKI Addressable Heat Detector (FEAHE2000)
- Buy 10 for £41.93 £34.94 each and save 3%
- Buy 20 for £41.27 £34.39 each and save 5%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Zeta Fyreye MKI Addressable Heat Detector (FEAHE2000)
The Zeta FEAHE2000 is an analogue addressable rate of rise heat detector. It will respond with a value of 75 if the detector is triggered by a rate of rise alarm (that is a fast increase in temperature over a set period of time). The detector also responds to a fixed temperature of 57°C and will return a value of 95 if the detector is triggered by this condition.
Key Features of the FEAHE2000 |
|---|
|
> Rate of Rise & Fixed Heat trigger @ 57°C
> DIFT approved > Complies fully to EN54 parts 5 & 7 > Twin LEDs to improve alarm indication > Includes locking grub screw to prevent unauthorised head removal |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | FEAHE2000 |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKI |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Colour | White |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Fyreye MKI Addressable Heat Detector (FEAHE2000)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Fyreye MKI Addressable Heat Detector (FEAHE2000)
| Product code: |
FEAHE2000 |
| Description: | Zeta Fyreye MKI Addressable Heat Detector |
| Size (with base): | Dia:100mm x 48mm (101 x 64mm) |
| Operating voltage: | 17 – 28V DC (Plus Protocol) |
| Detector class: | Rate of Rise & Fixed Heat |
| Quiescent current: |
440μA |
| Alarm current: |
2.4mA |
| Alarm condition: |
Rate of Rise or Fixed Heat trigger @ 57°C |
| Compatible bases: | FE-CB Common Base, FE-IB Isolator Base, FEA-RB Addressable Relay Base, FEA-SB Addressable Sounder Base, FEA-SFB Addressable Sounder Flasher Base |
| Coverage: | 50m2 |
| IP Protection Rating: | IP43 |
| Start-up time: |
30 seconds |
| Operating temperature: | -10°C to 50°C |
| Min. continuous temperature: | 0°C |
| Max. humidity: | 95% RH Non Condensing |
| Design standard: | EN54 Pt 5 |
| Approval: | DIFT |
| Weight (with base): |
100g (158g) |
