Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.

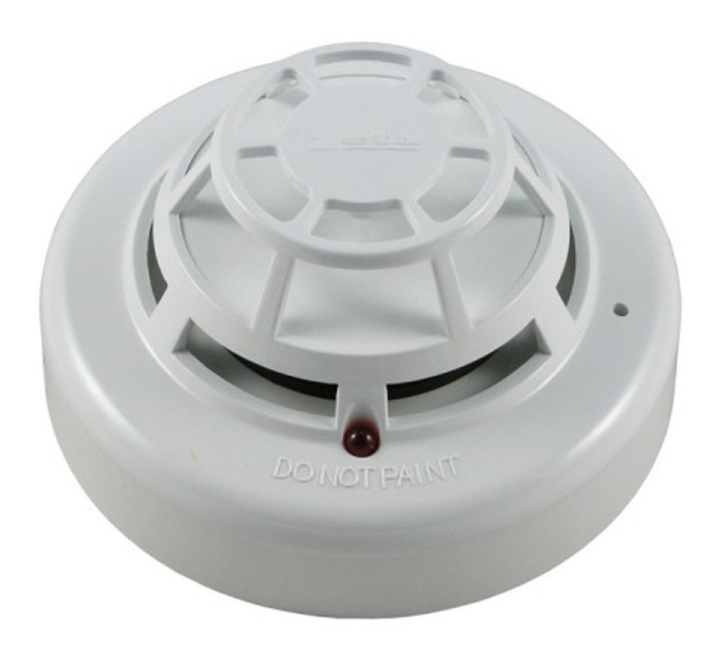

Zeta Fyreye MKI Addressable Combined Smoke & Heat Detector (FEAOH2000)
SKU
FEAOH2000
Zeta Fyreye MKI Addressable Combined Smoke & Heat Detector (FEAOH2000)
Discontinued
Alternative Products
Product Details for Zeta Fyreye MKI Addressable Combined Smoke & Heat Detector (FEAOH2000)
The Zeta FEAOH2000 Fyreye Extra Analogue Addressable Combined Smoke & Heat Detector works with Zeta Addressable Protocol and is compatible with all current Zeta analogue addressable control panels. The FEAOH2000 is a dual type detector that reacts to both smoke and heat independently. Suitable for use in places where, traditionally, an ionisation type detector may have been chosen. Supplied with a locking grub screw to prevent unauthorised head removal.
Key Features of the FEAOH2000 |
|---|
|
> Addressable combined smoke & heat detector
> DIFT approved > Complies fully to EN54 parts 5 & 7 > Twin LEDs to improve alarm indication > Includes locking grub screw to prevent unauthorised head removal |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | FEAOH2000 |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKI |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Colour | White |
| Warranty | 2 Years |
FAQ’s for Zeta Fyreye MKI Addressable Combined Smoke & Heat Detector (FEAOH2000)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Fyreye MKI Addressable Combined Smoke & Heat Detector (FEAOH2000)
| Product code: |
FEAOH2000 |
| Description: | Zeta Fyreye MKI Addressable Combined Smoke & Heat Detector |
| Size (with base): | Dia:100mm x 48mm (101 x 64mm) |
| Operating voltage: | 17 – 28V DC (Plus Protocol) |
| Detector class: | Optical Smoke, Rate of Rise & Fixed Heat |
| Quiescent current: |
520μA |
| Alarm current: |
2.3mA |
| Return value of 55 (Nominal Alarm Alert): |
2.4% Obscuration per metre |
| Return value of 75: |
Rate of Rise trigger |
| Return value of 95: | Fixed heat trigger |
| Coverage: | 100m2 |
| IP Protection Rating: | IP43 |
| Start-up time: |
30 seconds |
| Operating temperature: | -10°C to 50°C |
| Min. continuous temperature: | 0°C |
| Max. humidity: | 95% RH Non Condensing |
| Design standard: | EN54 Pt 5 & 7 |
| Approval: | DIFT |
| Weight (with base): |
100g (158g) |
