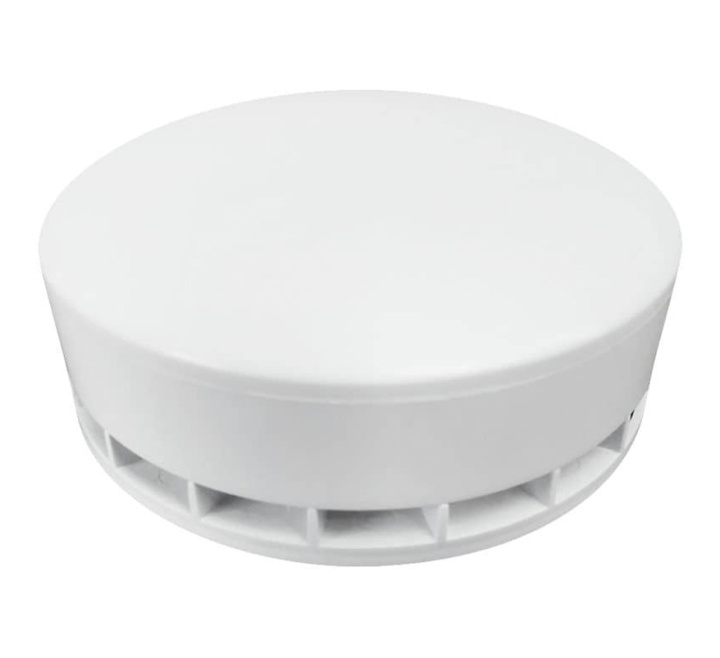

Global Fire VULCAN 2 Addressable Base Sounder with Isolator (VULCAN2-ASI)
SKU
VULCAN2-ASI
£31.55
£26.29
Global Fire VULCAN 2 Addressable Base Sounder with Isolator (VULCAN2-ASI)
- Buy 10 for £31.07 £25.89 each and save 2%
- Buy 20 for £30.10 £25.08 each and save 5%
In Stock
Product Details for Global Fire VULCAN 2 Addressable Base Sounder with Isolator (VULCAN2-ASI)
The Global Fire VULCAN2-ASI is an addressable sounder base that can be configured as a shadow sounder or auxiliary sounder. Incorporates a loop isolator. Up to 96 devices can be connected to a single loop depending on loop loading
Key Features of the VULCAN2-ASI |
|---|
|
> Addressable Base Sounder, white
> Incorporates loop isolator > Configure to operate in either shadow or aux modes > Up to 64 sounder devices can be connected to a single loop (depending on loop loading) > Dip-switch address setting > Tone and mode selection via a jumper > Adjustable sound output > Optional lid available separately |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | VULCAN2-ASI |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GFE ZEOS |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Global Fire VULCAN 2 Addressable Base Sounder with Isolator (VULCAN2-ASI)
No questions yet. Be the first to ask the question!
Product Specification for Global Fire VULCAN 2 Addressable Base Sounder with Isolator (VULCAN2-ASI)
| Product code: | VULCAN2-ASI |
| Dimensions: |
D: 110mm x H:50mm (incl. base) |
| Supply voltage: |
Loop powered - 20V to 30V DC |
| Loop Current - Quiescent: |
430 uA & 550 uA max. with isolator |
| Sweeping tone 800-1000 Hz: |
2.65mA |
| Alternating high freq. 2.7-3.2Khz: | 5.15 mA |
| Continuous tone 800 Hz: | 2.65 mA |
| Alternating low freq. 800-1000 Hz: | 2.65 mA |
| Max sounder output: | 97 dB (@ 1 meter - 30V DC) |
| Reset/start-up times: |
20 seconds max. |
| Protection category: | IP21C - Type A - Indoor use |
| Operation temperature: | -10oC to +55oC |
| Max. cable size: | 0.5 - 2.5mm2 |
| Max. humidity: | 95% RH Non-Condensing |
| Colour / case material: | White / ABS - Transparent PC |
| Weight: | 144g with lid |
