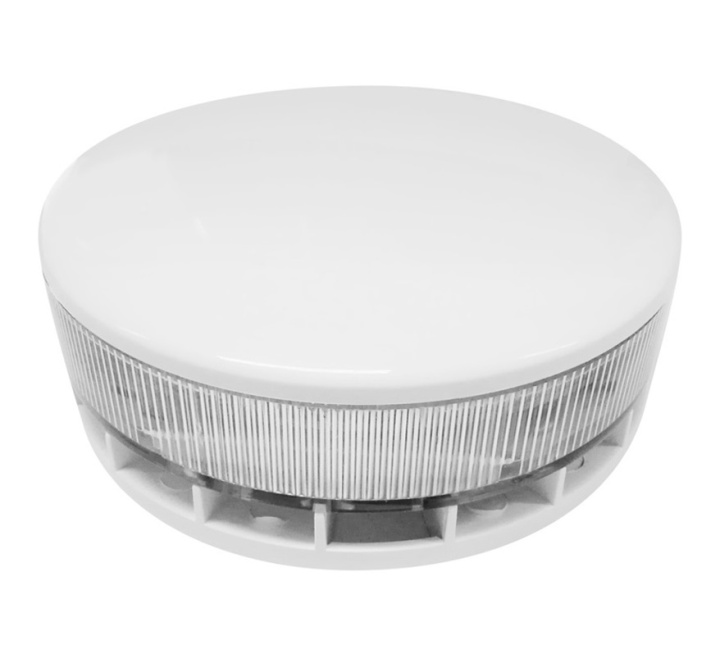

Global Fire VULCAN 2 Addressable Base Sounder Beacon with Isolator (VULCAN2-ASBI)
SKU
VULCAN2-ASBI
£45.64
£38.03
Global Fire VULCAN 2 Addressable Base Sounder Beacon with Isolator (VULCAN2-ASBI)
- Buy 10 for £44.93 £37.44 each and save 2%
- Buy 20 for £43.52 £36.27 each and save 5%
In Stock
Product Details for Global Fire VULCAN 2 Addressable Base Sounder Beacon with Isolator (VULCAN2-ASBI)
The Global Fire VULCAN2-ASBI is an addressable combined sounder/beacon base that can be configured as a shadow sounder/beacon or auxiliary sounder/beacon. Incorporates a loop isolator. Up to 64 devices can be connected to a single loop depending on loop loading.
Key Features of the VULCAN2-ASBI |
|---|
|
> Addressable Base Sounder Beacon, white
> Incorporates Isolator > Configure to operate in either shadow or aux modes > Up to 64 sounder/beacon devices can be connected to a single loop (depending on loop loading) > Dip-switch address setting > Tone and mode selection via a jumper > Adjustable sound > Optional lid available separately |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | VULCAN2-ASBI |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GFE ZEOS |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Global Fire VULCAN 2 Addressable Base Sounder Beacon with Isolator (VULCAN2-ASBI)
No questions yet. Be the first to ask the question!
Product Specification for Global Fire VULCAN 2 Addressable Base Sounder Beacon with Isolator (VULCAN2-ASBI)
| Product code: | VULCAN2-ASBI |
| Dimensions: |
D: 110mm x H:50mm (incl. base) |
| Supply voltage: |
Loop powered - 20V to 30V DC |
| Loop Current - Quiescent: |
430 uA & 550 uA max. with isolator |
| Sweeping tone 800-1000 Hz: |
2.65mA |
| Alternating high freq. 2.7-3.2Khz: | 5.15 mA |
| Continuous tone 800 Hz: | 2.65 mA |
| Alternating low freq. 800-1000 Hz: | 2.65 mA |
| Loop current - Beacon: | 2.7 mA |
| Max sounder output: | 97 dB (@ 1 meter - 30V DC) |
| Reset/start-up times: |
20 seconds max. |
| Protection category: | IP21C - Type A - Indoor use |
| Operation temperature: | -10oC to +55oC |
| Max. cable size: | 0.5 - 2.5mm2 |
| Max. humidity: | 95% RH Non-Condensing |
| Colour / case material: | White / ABS - Transparent PC |
| Weight: | 144g with lid |
