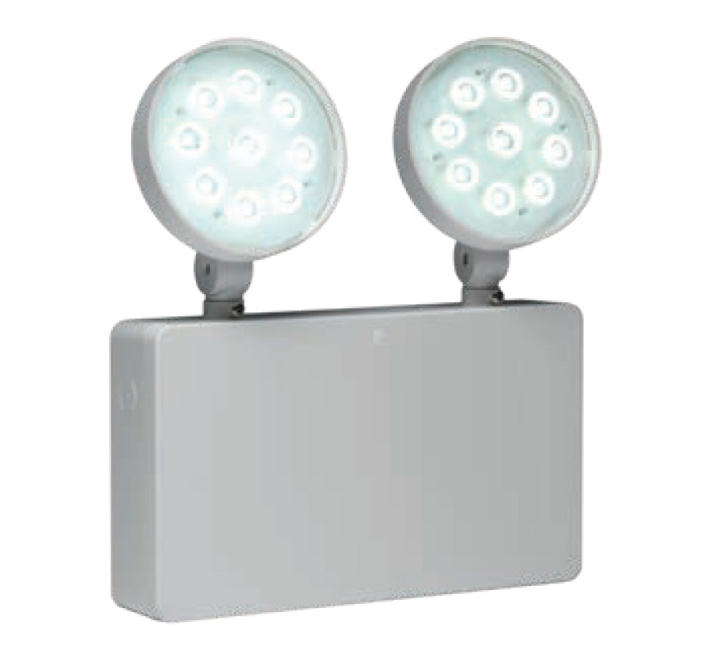

Advanced Twin-LED Emergency Spotlights 6W (380 Lumen) - Addressable - Wall Mount - Non-Maintained (TLED/NM3/P)

Advanced Logo
Be the first to review this product
SKU
TLED/NM3/P
£327.47 £272.89
LuxIntelligent TLED/NM3/P Twin-LED Spotlights, Wall Mount, Non-Maintained, Addressable
Available to Order This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.

Product Details for Advanced Twin-LED Emergency Spotlights 6W (380 Lumen) - Addressable - Wall Mount - Non-Maintained (TLED/NM3/P)

LuxIntelligent TLED/NM3/P Twin-LED Spotlights are wall mounted, non-maintained and addressable. They provide high level emergency lighting across a specific area.

In the event of a power failure the units will provide 3-hours of emergency lighting from its NiCd batteries. Ideal for high-risk areas. The projector heads may be mounted away from the control box and the construction of the control box also allows for the unit to be mounted with the projectors on the underside. There are 20mm knock-outs in one end at the back for cable entry.

When wall mounted at 2.5m high, the Twin-LED can be spaced 25m apart to achieve 1 Lux on a corridor centre line. BS EN 60598.2.22 compliant.


Key Features of the TLED/NM3/P

> Twin-LED luminaire
> IP20 rated
> Wall mounted
> Non-maintained
> Addressable
> Energy efficient
> Ideal for high risk processes
> Compatible with the LuxIntelligent Automatic Emergency Lighting Testing Panel
> 20mm knockouts for cable entry
> EN60598.2.22 compliant

More information about Advanced Twin-LED Emergency Spotlights 6W (380 Lumen) - Addressable - Wall Mount - Non-Maintained (TLED/NM3/P)

More Information
Brand Advanced Electronics
Manufacturer Part No. TLED/NM3/P
Write Your Own Review
You're reviewing:Advanced Twin-LED Emergency Spotlights 6W (380 Lumen) - Addressable - Wall Mount - Non-Maintained (TLED/NM3/P)
Your Rating

Datasheets and Manuals for Advanced Twin-LED Emergency Spotlights 6W (380 Lumen) - Addressable - Wall Mount - Non-Maintained (TLED/NM3/P)

FAQ’s for Advanced Twin-LED Emergency Spotlights 6W (380 Lumen) - Addressable - Wall Mount - Non-Maintained (TLED/NM3/P)

Loading...



Ask Question

All questions will be displayed after moderation.

No questions yet. Be the first to ask the question!

Product Specification for Advanced Twin-LED Emergency Spotlights 6W (380 Lumen) - Addressable - Wall Mount - Non-Maintained (TLED/NM3/P)

Dimensions
 W:275mm x H:155mm x D:55mm
Total height (inc. heads) 300mm
Light source: 2 x 3W LED heads (9 white LEDs each)
Light output: 2 x 380 lm
Battery: 3.6V 4.0 Ah (NiCd)
Recharge period: 24 hours (14 hours to 1-hour duration)
Supply Voltage: 230V (220 - 240V) ~ 50Hz
Supply/Charging Power: 2.9W
Cable entry: 20mm knock-outs in one end at the back
Ambient temperature: 25oC
Insulation class: Class II
Colour temperature: 5000K
IP rating: IP65
Weight: 3.6kg
