Product Details for Fike Sita Addressable Manual Call Point with Cover (403-0006)

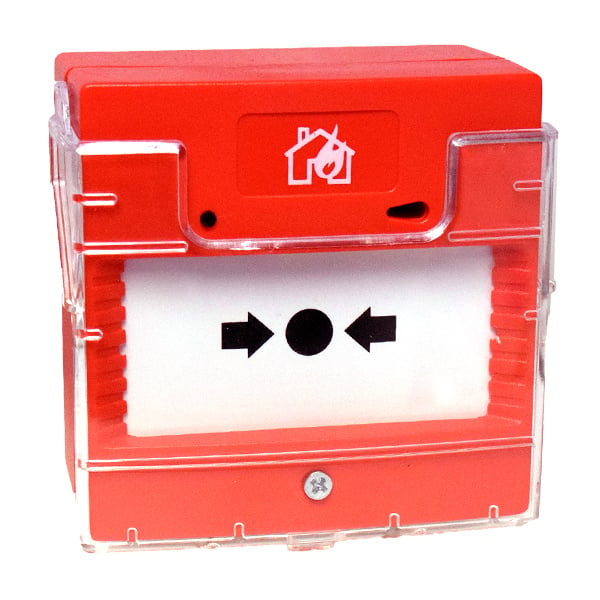

The Fike 403-0006 is an addressable Manual Call point with re-settable element, reset key, back box, adaptor plate for flush mounting and inbuilt short circuit isolator.
The Sita Manual Call Point allows for user activation of the fire alarm system. Once operated the device latches into the alarm position and requires manually resetting via a special key. The MCP is an addressable unit that attaches to the loop. Digital communication technology to the control panel is implemented allowing for accurate data transfer at high transmission speeds. This device is only compatible with the CIE-A-200, CIE-A-400, Sita200plus, Duonet and Quadnet ranges of control panel.
Key Features of the 403-0006 |
|---|
|
> Indoor manual call point for Fike Sita addressable systems.
> Suitable for both surface or flush mounting. > Supplied complete with perspex cover. |
| Brand | Fike |
|---|---|
| Manufacturer Part No. | 403-0006 |
| Product Series | SITA |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Fike SITA |
| Colour | Red |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Fike Sita Addressable Manual Call Point with Cover (403-0006)
No questions yet. Be the first to ask the question!
Product Specification for Fike Sita Addressable Manual Call Point with Cover (403-0006)
- Flush Mounted : 25mm
- Operating Temperature : 10oc to +50oC
- Voltage Range : 24V to 42V DC
- LED Indication :
- Activated : 0.3 Second Interval
- System Compatability :
- CIE-A-200
- Sita200 PLUS : V2.00 Onwards
- Duonet and Quadnet : V1 Onwards
- Loop Current @ 24V DC :
- Quiescent : 0.18mA
- Active : 5.96mA
- Device Loading Unit Rating : 3
- Dimensions : 89x89x52mm
