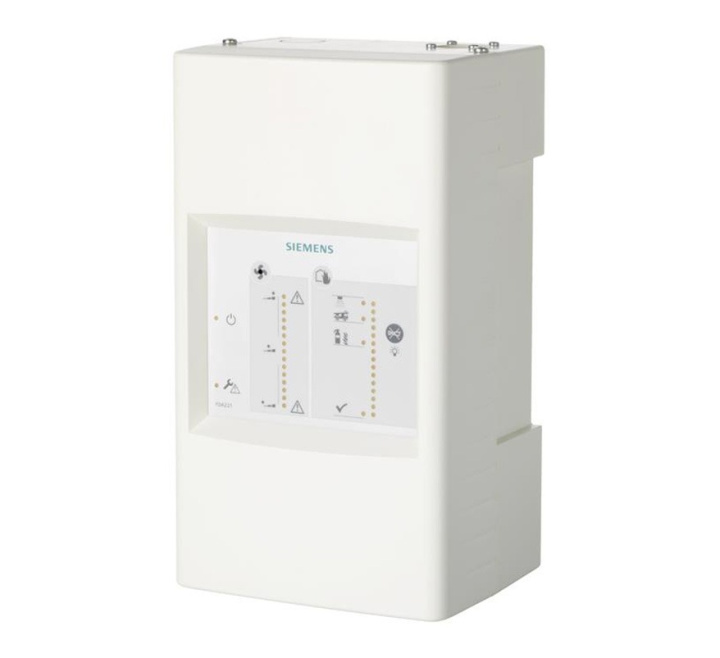

Siemens FDA221 Cerberus PRO ASD Aspirating Smoke Detector 500m² (Standalone) (S54333-F15-A1)
SKU
S54333-F15-A1
£1,111.57
£926.31
Siemens FDA221 Cerberus PRO ASD Aspirating Smoke Detector 500m² (Standalone) (S54333-F15-A1)
- Buy 10 for £1,089.80 £908.17 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FDA221 Cerberus PRO ASD Aspirating Smoke Detector 500m² (Standalone) (S54333-F15-A1)
The Siemens FDA221 series of detectors are a very early warning dual wavelength (blue and infrared) smoke detectors designed to protect small business-critical environments up to 500 m².
The detector works by continually drawing air into sampling holes in a pipe network. The air is passed into a uniquely designed detection chamber where light scattering technology detects the presence of very small amounts of smoke.
The FDA221 detectors can communicate directly on the FDnet/C-NET loops (with an optional FDCC221S communication interface), so there is no need for separate relay or network connections.
Key Features of the S54333-F15-A1 |
|---|
|
> Early detection of a wider spectrum of particle sizes in the air
> Configuration using the USB interface or the control panel via FDCC221S (op- tional) > 'ASD Asyst-Tool' software to assist with pipe configuration > Unique dust-resistant detection chamber > Intuitive front indicator for airflow and smoke value > Access to service functions > Different event protocols > Offline/online configuration supported > 4 - 20 mA output |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDA221 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Detectable Medium | Smoke |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDA221 Cerberus PRO ASD Aspirating Smoke Detector 500m² (Standalone) (S54333-F15-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDA221 Cerberus PRO ASD Aspirating Smoke Detector 500m² (Standalone) (S54333-F15-A1)
| Product: | Siemens Aspirating Smoke Detector |
| Product code: | S54333-F15-A1 |
| Dimensions: |
W:155mm x H:280mm x D:114mm |
| Operating voltage: | DC 19 - 30 V |
| Operating current: | 150 mA (nominal); 250 mA (in alarm) |
| Sound level: | High 33 dB, medium 30 dB, low 26 dB |
| Operating temperature: | -20 to +60 °C |
| Relative humidity: | 5 - 95% rel. (no condensation) |
| Pipe length: | 30 m (single pipe length) 50m (total pipe length) |
| Air inlet pipe: | Metric: 21 mm ID - 25 mm OD |
| Relay outputs: | 3x 2 A / 30 V |
| Alarm threshold: | 0.14 - 2.0 % obs/m / info alarm, pre-alarm, fire 1 (5 sets) 6.0 - 20 % obs/m / fire 2 (5 sets) |
| Area coverage: | Up to 500 m² |
| Display: | 3 Alarm state indicators Fault indicators Smoke and airflow level Bargraphs |
| Communication protocol: | FDnet/C-NET |
| IP rating: | IP30 |
| Terminals: | 0.2 - 2.5 mm² (30 - 12 AWG) |
