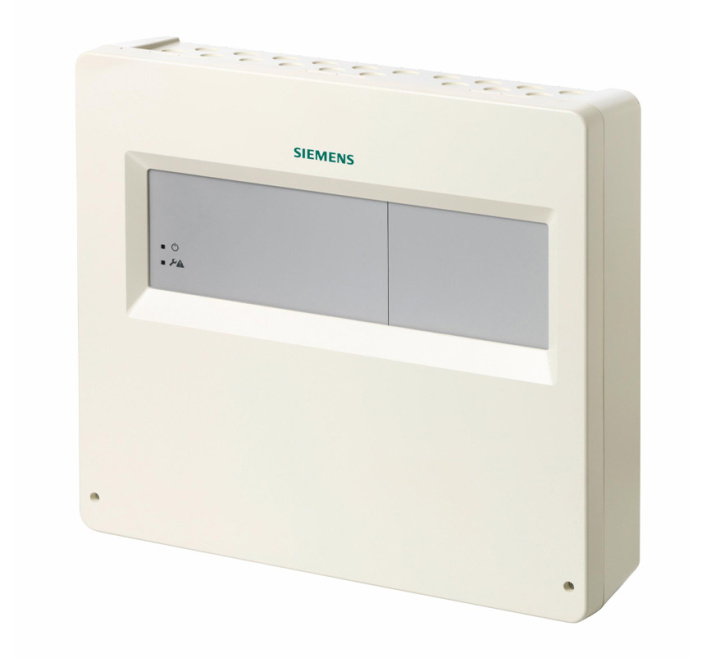

Siemens FP120-Z1 Cerberus PRO 24V 2A Power Supply Unit (70W) (S54400-S122-A1)
SKU
S54400-S122-A1
£284.53
£237.11
Siemens FP120-Z1 Cerberus PRO 24V 2A Power Supply Unit (70W) (S54400-S122-A1)
- Buy 10 for £278.95 £232.46 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FP120-Z1 Cerberus PRO 24V 2A Power Supply Unit (70W) (S54400-S122-A1)
The Siemens FP120-Z1 standalone Power Supply (70W) converts the mains voltage to system voltage and charges the batteries. It monitors mains voltage and batteries and provides one fault signal and relay output each. To support external powered devices with system voltage it provides two separated and isolated outputs 24 V.
Key Features of the S54400-S122-A1 |
|---|
|
> Output power 70 W
> 2 x separately fused, reactionless DC24V outputs, limited to 2A in total > Short-circuit-proof > Current limited > Mains voltage and batteries monitored > Battery charging with temperature compensation > Uninterruptible power supply in battery operation > Supplies other consumers (complies with EN 54 and VdS) > AC 230 V or AC 115 V > Integrated operating and fault indicator. > Fault forwarding possible via potential-free contacts. > Converts mains voltage to system voltage and charges batteries > DC 24V system voltage electrically isolated |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FP120-Z1 |
| Product Series | Cerberus PRO |
| Primary Power Source | Mains Powered (230V) |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FP120-Z1 Cerberus PRO 24V 2A Power Supply Unit (70W) (S54400-S122-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FP120-Z1 Cerberus PRO 24V 2A Power Supply Unit (70W) (S54400-S122-A1)
| Product: | Siemens 70W Power Supply Kit |
| Product code: | S54400-S122-A1 |
| Dimensions: | W:430mm x H:399mm x D:124mm |
| Mains voltage: |
AC 98 - 127 V / AC 196 - 253 V |
| Power supply: | 70W |
| Operating current: |
2500 mA |
| Battery capacity: | 2x 12V, 8 Ah or 12 Ah or 17 Ah |
| Storage temperature: |
-20 to +60 °C |
| Protection category: | IP30 |
| Relative humidity: | ≤95 % rel. (no condensation) |
| Colour housing/cover: | Pure white, ~RAL 9010 |
