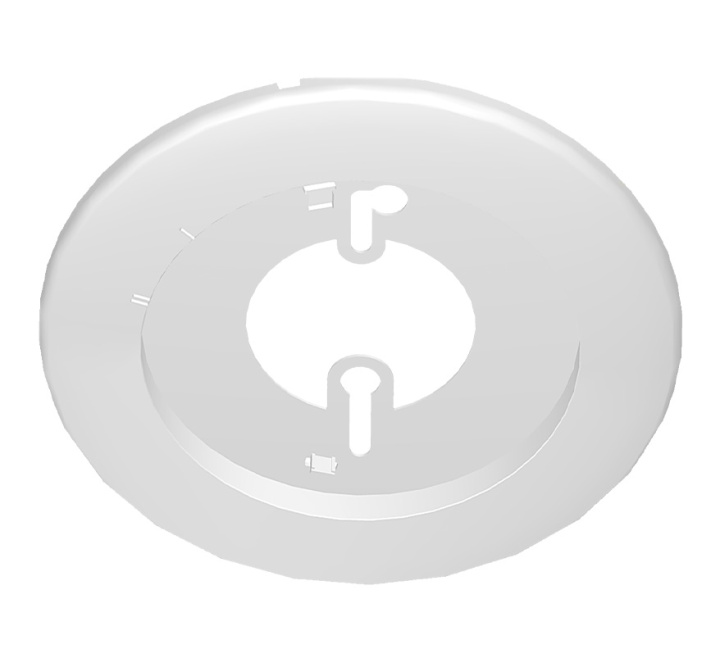

Kidde Intelligent Addressable Base Trim Skirt (White) (KE-DBA-SKTW)
Product Details for Kidde Intelligent Addressable Base Trim Skirt (White) (KE-DBA-SKTW)
The Kidde KE-DBA-SKTW is an Excellence series, base accessory. It offers the possibility to cover unsightly marks on ceilings surrounding the detector base. For retrofit applications it is especially handy when old devices are removed, normally leaving an unsightly brown border where the old detector was situated. With its matching white colour and same aesthetic finish as the Excellence series detectors, it finishes off any installation beautifully.
Installation
The KE-DBA-SKTW requires no special tools or additional parts for installation. The Excellence series detector base clips onto the trim skirt and with the standard base screw, both parts are easily attached to the ceiling in the normal way. Placed between the standard detector base and the ceiling, the pair is mounted on the same holes that is used for a standard detector base when used alone. The trim skirt uses the same screw orientation holes as the standard base, allowing for proper positioning on the ceiling in the normal way.
Since the address tag locations on the standard base become unusable due to the trim skirt, the trim skirt offers two new tag locations neatly along its edge in similar locations as is available on the standard base. To make fitting the detector to the base/trim skirt combination easier, new alignment aids for insertion and locking of the detector is present on the trim skirt rim, making alignment more visible.
Key Features of the KE-DBA-SKTW |
|---|
|
> Covers marks on the ceiling when new detectors are installed in old detector locations eliminating the need for ceiling touch ups
> Matches the colour and design of the Excellence series detector base, allowing for an aesthetic, integrated look > Two fitting locations for address tags on opposite sides avoid unnecessary time spent on base alignment > Detector alignment and insertion guides remain visible and are extended > Supports Excellence series bases without feature loss > Keyhole alignment screws similar to the standard base avoids rework on standard installation holes |
| Brand | Kidde Commercial |
|---|---|
| Manufacturer Part No. | KE-DBA-SKTW |
| Product Series | Kidde Excellence Series |
| System Type | Addressable |
| Warranty | 2 Years |
FAQ’s for Kidde Intelligent Addressable Base Trim Skirt (White) (KE-DBA-SKTW)
Product Specification for Kidde Intelligent Addressable Base Trim Skirt (White) (KE-DBA-SKTW)
| Code: | KE-DBA-SKTW |
| Description: | Kidde Intelligent addressable base accessory - trim skirt (white) |
| Dimensions: | 150mm x 7mm (Ø x H) |
| Compatibility: | Excellence series bases |
| Cable entries: |
1 |
| Colour: | White (RAL 9016) |
| Mounting: | Ceiling mount |
| Material (body): | Moulded ABS |
| Vandal proof: | No |
| Environment: | Indoor, Outdoor |
| Compliancy: | CE, REACH, RoHS 3, WEEE |
| Compatible products: | KE-DB3010-W, KE-DBA-TAGW |
| Weight: | 75g (net) |
