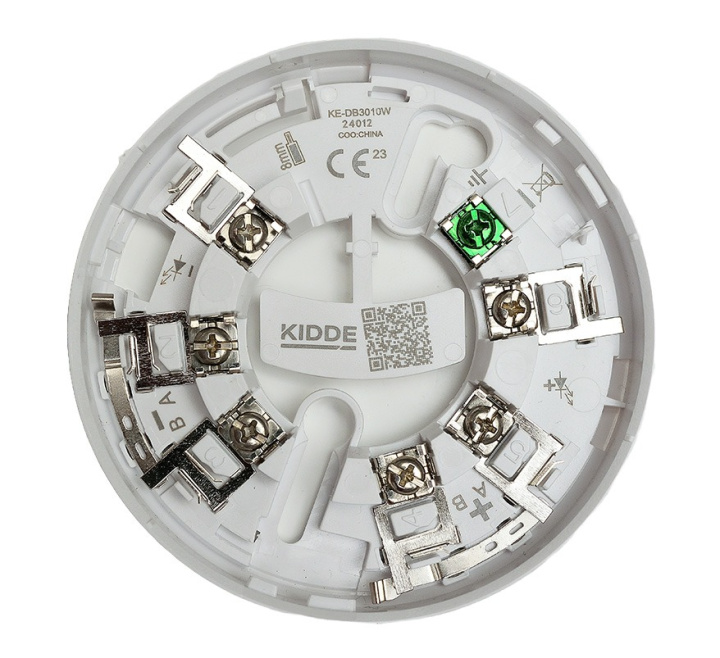

Kidde Intelligent Addressable Detector Base (White) (KE-DB3010W)
Product Details for Kidde Intelligent Addressable Detector Base (White) (KE-DB3010W)
The KE-DB3010W is an Excellence series, traffic white surface mount first-fix base allowing any Kidde Excellence addressable point detector to be inserted, removed or replaced without rewiring using an easy twist and lock action. An optical "floating" visual illusion blends the Excellence series detector into any environment beautifully.
The KE-DB3010W is supplied with a labeling tag that may be inserted at two locations around the base. Larger tags may also be ordered separately.
The innovative Excellence range of intelligent addressable devices offers advanced features for reliability and peace of mind. Coupled with features for ease of installation and maintenance on new fire detection systems, it’s a perfect match for exceptional overall performance.
Ease of use
Inserting the Excellence series detector into the base is simplified by indications on the base showing the insert and lock positions, and by visual, haptic and audible feedback. To prevent unauthorised removal of a detector from its base, an easy-to-active locking mechanism is incorporated into all detectors. If activated, a detector can only be released from its base using a dedicated tool.
Ease of installation
Forming an integral part of the detector assembly, this standard base is provided with key-hole slots for screw fixing directly to ceiling structures or conduit boxes. Large rear cable entry and cable entry from the side allows for flexible and easy wiring to the base.
For special applications a multitude of base accessories are available for recess and surface installations, ensuring easy and practical installations.
Ease of wiring and testing
Clearly marked and colour coded terminals with captive screws ensure correct and secure wiring termination for loop connections and optional cable screening. Remote indicator support is available.
As Excellence series devices support integrated isolators on-board, provision is made in the base for bridging isolation cable breaks when a detector is not fitted. This allows pre-installation cable continuity testing and maintains continuity when a detector is removed from its base.
Key Features of the KE-DB3010W |
|---|
|
> Includes an address tag for device labelling
> Dual address tag locations avoids base alignment to make tags visible > A selectable detector locking mechanism protects against unauthorised removal > Large rear cable entry with ample space for cables > Side cable entry and exit possibilities without additional fixture requirements > Flexible installation fixture with first fix screw features reduce installation time and effort > Colour coded screen terminal for easy identification > Clearly visible terminal marking avoids incorrect cabling > Cable cut-length template in the base > Robust, wire ready wiring terminals with captive clamping washers for quick installation > Isolation bridges included allows loop measurements without devices installed > Detector insert location and locked position indications facilitates visual cueing of the device > Simple twist-and-lock detector action with clip action audible feedback ensures the detector is properly inserted > Dual contact points on every connector for reliable detector/base contact |
| Brand | Kidde Commercial |
|---|---|
| Manufacturer Part No. | KE-DB3010W |
| Product Series | Kidde Excellence Series |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Kidde Excellence Series |
| Warranty | 2 Years |
FAQ’s for Kidde Intelligent Addressable Detector Base (White) (KE-DB3010W)
Product Specification for Kidde Intelligent Addressable Detector Base (White) (KE-DB3010W)
| Product no.: | KE-DB3010W |
| Description: | Kidde Excellence Series Intelligent Detector Accessory - Standard base, White |
| Dimensions: | Diameter:100mm x H:17mm |
| Compatibility: | Kidde Commercial Excellence series detection devices; KE-DBA-LABW-L1S, KE-DBA-LABW-L2S, KE-DBA-LABW-L3S, KE-DBA-LABW-L4S, KE-DBA-LABW-S, KE-DP3020W, KE-DP3021W, KE-DP3120W, KE-DP3121W, KE-DT3001W-HAB, KE-DT3101W-HAB |
| Connectivity: | 2-wire loop, earth & remote indicator |
| Cable specification: | 1 to 2.5 mm Ø / 0.8 to 5.2 mm² / AWG 18 to 10 |
| No. of cable cores: | 2 |
| Terminals: | 7 (A+, A-, B+, B-, Screen, RI+, RI-) |
| Cable entries: | 5 side, 1 rear |
| Colour / material: | Traffic white (RAL9016) / Polycarbonate |
| Vandal proof: | No |
| Operating temperature: | -10 to +65°C |
| Storage temperature: | -30 to +75°C |
| Relative humidity: | 10 to 93% non-condensing |
| Environment: | Indoor |
| Regulatory: | CE, REACH, RoHS3, WEEE |
| Weight (net): | 55g |
