Kidde Intelligent Addressable Weatherproof Base (KE-DBA-IPW)
Product Details for Kidde Intelligent Addressable Weatherproof Base (KE-DBA-IPW)

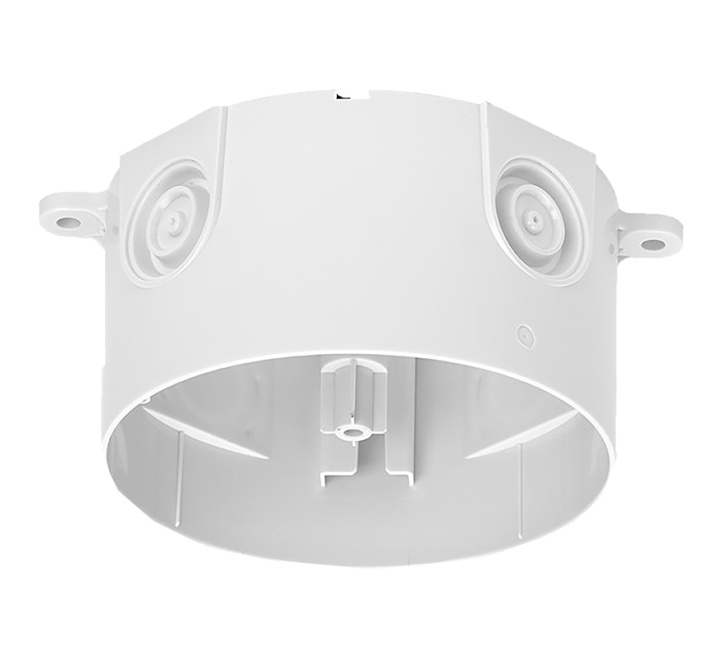

The Kidde KE-DBA-IPW is an Excellence series, surface mount base accessory. It allows loop cabling to be installed in wet environments by allowing the use of cable glands to seal the cable entry into the base from water ingress via the cables. Four entry points are provided on the wall of the base to accommodate side entry glands. Rear cable entry into the base is also available with two similar cable gland knockouts.
Installation
The conduit entry points are conveniently supplied with breakouts and drill locations to facilitate either installation method.
The standard Kidde Excellence series detector base fits snugly inside the fixture, completing the installation with the same feature set as for standard surface mount installation, including address tag mounting ability in two locations, head locking to avoid unauthorised detector removal, and device orientation features for quick, easy and secure detector placement.
Key Features of the KE-DBA-IPW |
|---|
|
> Dual rear cable entry with gland support and ample space for cables
> Cable gland support to prevent water ingress on 4 sides > Drill location support for cable entry makes installation easy > External screw fixtures reduces risk of water ingress > Dual address tag locations avoids alignment to make tags visible > Supports standard Excellence series bases without feature loss, all base features remain usable > Supports access to the selectable detector locking mechanism that protects against unauthorized detector removal |
| Brand | Kidde Commercial |
|---|---|
| Manufacturer Part No. | KE-DBA-IPW |
| Product Series | Kidde Excellence Series |
| System Type | Addressable |
| Colour | White |
| Warranty | 2 Years |
FAQ’s for Kidde Intelligent Addressable Weatherproof Base (KE-DBA-IPW)
Product Specification for Kidde Intelligent Addressable Weatherproof Base (KE-DBA-IPW)
| Code: | KE-DBA-IPW |
| Description: | Kidde Intelligent addressable base accessory - weatherproof base (white) |
| Dimensions: | 104mm x 57mm (Ø x D) |
| Compatibility: | Excellence series bases |
| Cable entries: |
6 (2 off rear, 4 off side 25 mm (Ø)) |
| Colour: | White (RAL 9016) |
| Mounting: | Ceiling mount |
| Material (body): | Moulded ABS |
| Vandal proof: | No |
| Operating temperature: | -30 to +85°C |
| Relative humidity: | 20 to 95% non condensing |
| Environment: | Indoor |
| Compliancy: | CE, REACH, RoHS 3, WEEE |
| Compatible products: | KE-DB3010-W, KE-DBA-TAGW |
| Weight: | 165g (net) |
