Hochiki CDX Conventional Manual Call Point with Backbox (Red) (CCP-E)
SKU
CCP-E
£8.72
£7.27

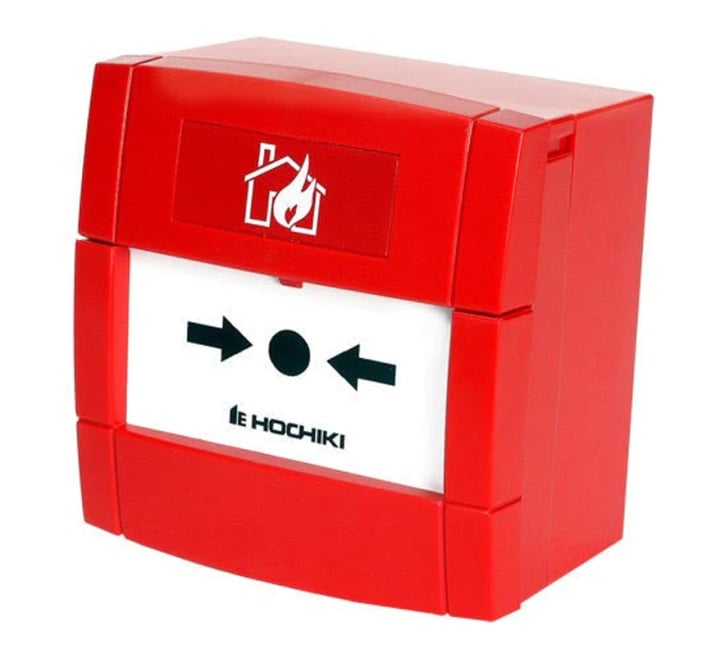

Hochiki CCP-E Conventional Manual Call Point with Red Back Box
In Stock
Product Details for Hochiki CDX Conventional Manual Call Point with Backbox (Red) (CCP-E)
The Hochiki CCP-E is a Conventional call-point based upon the industry standard KAC world series housing and features easy to install, push-fit wiring terminals.
The unit can support either a ‘Frangible Glass’ element or a ‘Non Frangible Plastic’ element.
Key Features of the CCP-E |
|---|
|
> Approved to EN54-11:2001
> Terminals can accommodate up to a 2.5 mm solid conductor > Other colours available on request > Approved by LPCB |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CCP-E |
| Product Series | Hochiki CDX |
| Colour | Red |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki CDX Conventional Manual Call Point with Backbox (Red) (CCP-E)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki CDX Conventional Manual Call Point with Backbox (Red) (CCP-E)
| Description | Hochiki Conventional Manual Call Point |
| Product Code | CCP-E |
| Dimensions: Flush: Surface with back box: | W:89mm x H:93mm x D:27.5mm W:89mm x H:93mm x D:59.5mm |
| Nominal operating resistance: | 470Ω |
| Max. contact resistance (R): | 200Ω |
| Operating temperature range: | -10 °C to +55 °C |
| Storage temperature range: | -10 °C to +55 °C |
| Maximum Humidity: | 95% RH Non Condensing (at 40°C) |
| IP rating: | IP24 |
| Colour/ Case material: | Red / ABS |
| Cable terminal size: | 0.5 ~ 2.5 mm2 |
| Accessories: | Frangible element: KAC/G/HE Non-frangible element: KAC/EWS/HE |
| Weight: | 110g flush 161g surface with backbox |
