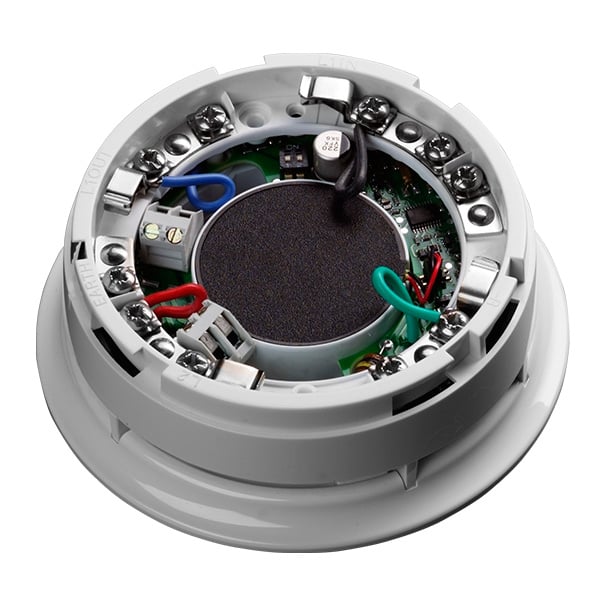

Apollo AlarmSense Sounder Base (45681-510APO)
In Stock
Product Details for Apollo AlarmSense Sounder Base (45681-510APO)
The AlarmSense Sounder Base can only be used with AlarmSense systems. It is fitted with electronic circuitry to monitor the presence of detectors and signals any unauthorised removal of detector heads. It is supplied with a high or low volume setting and red or white caps are available for stand-alone installation.
System Compatibility
AlarmSense bases can only be used in a system that is powered and controlled by purpose designed AlarmSense fire control panels. Please contact us for further details on AlarmSense compatible control equipment.
Caution: Do not use Series 65 detectors on AlarmSense systems. Although they might appear to work initially, their use could cause severe system malfunction. If used with the sounder or sounder visual indicator base the non-priority function will not operate correctly.
Watch the Video
Key Features of the 45681-510APO |
|---|
|
> AlarmSense priority/non priority signal recognition
> Detects the removal of a detector head and reports a fault > Continues to work during unauthorised removal of detectors > Quick and simple installation > Provides audible signal and detection at one point > High and low volume ranges |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 45681-510APO |
| Primary Power Source | 24V DC |
| System Type | 2-Wire |
| Colour | White |
| Warranty | 10 Years |
FAQ’s for Apollo AlarmSense Sounder Base (45681-510APO)
Product Specification for Apollo AlarmSense Sounder Base (45681-510APO)
| Sound Output (SPL) at 24V, DIL-switch selectable: | High Volume Setting, Maximum: 87dB(A) / Low Volume Setting, Nominal: 70dB(A) |
| Polarity: | Polarity Insensitive |
| Operating Voltage: | Sounders Active = 18-33V / Sounders Off = <15V |
| Quiescent Current at 12V: | <20µA |
| Sounder Active Current at 24V: | 5mA |
| EMC: | CE marked to EN50130-4 |
| 115mm (D) x 40mm (H) | |
| Weight: | 150g |
| Housing: | White polycarbonate moulding red or white caps available |
