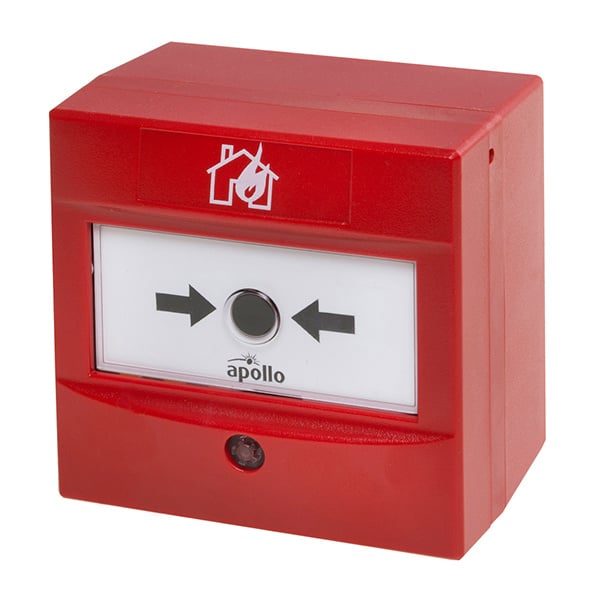

Apollo AlarmSense Manual Call Point (55400-894APO)
In Stock
Product Details for Apollo AlarmSense Manual Call Point (55400-894APO)
The AlarmSense Manual Call Point has been designed to operate on a loop of AlarmSense compatible two wire fire alarm systems. An alarm is initiated by pressing the resettable element. The manual call point signals to the Control and Indicating Equipment using zene voltages. An alarm status is indicated through the rotation of the resettable element, displaying and yellow and black indication bars and a solid red LED. The manual call point can be easily reset from the front using the supplied reset key.
Operation
When activated, the AlarmSense Manual Call Point introduces a load onto the line, which is detected by the fire control panel. The fire control panel then increases the line voltage, which activates the sounders, the manual call point load is then removed.
System Compatibility
AlarmSense Manual Call Points can only be used in a system that is powered and controlled by purpose designed AlarmSense fire control panels. Please contact us for further details on AlarmSense compatible control equipment.
Mechanical Construction
The component parts of the call point are moulded in a robust fire retardant polycarbonate.
Watch the Video
Key Features of the 55400-894APO |
|---|
|
> Resettable operating element
> Easy access, front reset mechanism > EN 54-11 Certified > 170° viewable LED > Suitable for semi flush or surface mounting |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 55400-894APO |
| Primary Power Source | 24V DC |
| System Type | 2-Wire |
| Colour | Red |
| Warranty | 10 Years |
FAQ’s for Apollo AlarmSense Manual Call Point (55400-894APO)
Product Specification for Apollo AlarmSense Manual Call Point (55400-894APO)
| Product code: | 55400-894APO |
| Description: | Apollo AlarmSense Manual Call Point |
| Dimensions: | W:90mm x L:90mm x D:63mm |
| Colour: | Red |
| Materials: | Housing: Polycarbonate |
| Detection principle: | Operation of a switch |
| Key type: | Apollo Manual Call Point Reset Key |
| Standards / Approvals: | EN54-11 / LPCB, CPR |
| Quiescent current: | 50μA (tested @ 24V dc) |
| Humidity: | 0% to 95% (no condensation or icing) |
| IP Rating: | IP44 |
| Warranty: | 10 year |
