Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.
Global Fire Vulcan 2 Conventional Base Beacon & Lid
SKU
VULCAN2-CB
Global Fire Vulcan 2 Conventional Base Beacon & Lid
Discontinued
Only 2 left
Alternative Products
Product Details for Global Fire Vulcan 2 Conventional Base Beacon & Lid

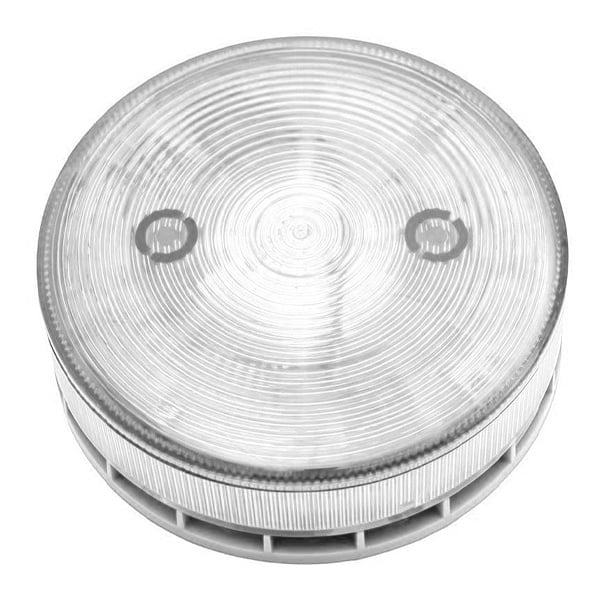

The Global Fire VULCAN 2 CB is a low consumption base beacon designed to be used as an unobtrusive low profile beacon or as a base beacon to be installed in conjunction with a conventional detector. This results in reduced installation costs and improves the aesthetics of the fire alarm system.
Key Features of the VULCAN2-CB |
|---|
|
> Conventional base beacon
> Low profile design for improved aesthetics |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | VULCAN 2 CB |
FAQ’s for Global Fire Vulcan 2 Conventional Base Beacon & Lid
No questions yet. Be the first to ask the question!
Product Specification for Global Fire Vulcan 2 Conventional Base Beacon & Lid
| SUPPLY VOLTAGE | 20 V to 30 V DC |
| LOOP CURRENT – BEACON | 2.5 mA |
| MAXIMUM SOUNDER OUTPUT | 96 dB (@ 1 m – 30 V DC) |
| MAX. CABLE SIZE | 2.5 mm² |
| OPERATING TEMPERATURE | -10ºC to 55ºC |
| MAX. HUMIDITY | 95% RH Non-Condensing |
| CASE MATERIAL | ABS and Transparent PC |
| COLOUR | Red or White |
| DIMENSIONS | 100 (D) x 29 (H) mm |
| WEIGHT | 144 g inc. Lid |
