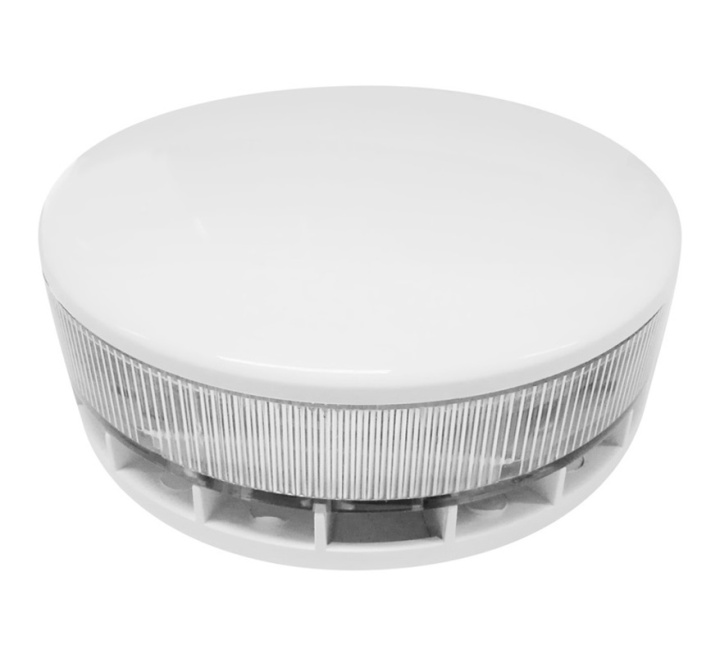

Global Fire VULCAN 2 Conventional Base Sounder Beacon & Lid (VULCAN2-CSB)
SKU
VULCAN2-CSB
£28.76
£23.97
Global Fire VULCAN 2 Conventional Base Sounder Beacon & Lid (VULCAN2-CSB)
- Buy 10 for £28.33 £23.61 each and save 2%
- Buy 20 for £27.44 £22.87 each and save 5%
In Stock
Product Details for Global Fire VULCAN 2 Conventional Base Sounder Beacon & Lid (VULCAN2-CSB)
The Global Fire VULCAN 2 CSB is a low consumption base sounder and beacon designed to be used as an unobtrusive low profile sounder/beacon or as a base sounder/beacon to be installed in conjunction with a conventional detector. This results in reduced installation costs and improves the aesthetics of the fire alarm system. Four different tones are available and selected by jumpers . The sound level can be adjusted using the potentiometer if required.
Key Features of the VULCAN2-CSB |
|---|
|
> Conventional base sounder and beacon (VID)
> 4 different tones which are selected by jumpers > Sound level can be adjusted using the potentiometer > Low profile design for improved aesthetics |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | VULCAN2-CSB |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Global Fire VULCAN 2 Conventional Base Sounder Beacon & Lid (VULCAN2-CSB)
No questions yet. Be the first to ask the question!
Product Specification for Global Fire VULCAN 2 Conventional Base Sounder Beacon & Lid (VULCAN2-CSB)
| SUPPLY VOLTAGE | 20 V to 30 V DC |
| LOOP CURRENT – BEACON | 2.5 mA |
| MAXIMUM SOUNDER OUTPUT | 96 dB (@ 1 m – 30 V DC) |
| MAX. CABLE SIZE | 2.5 mm² |
| OPERATING TEMPERATURE | -10ºC to 55ºC |
| MAX. HUMIDITY | 95% RH Non-Condensing |
| CASE MATERIAL | ABS and Transparent PC |
| COLOUR | Red or White |
| DIMENSIONS | 100 (D) x 29 (H) mm |
| WEIGHT | 144 g inc. Lid |
