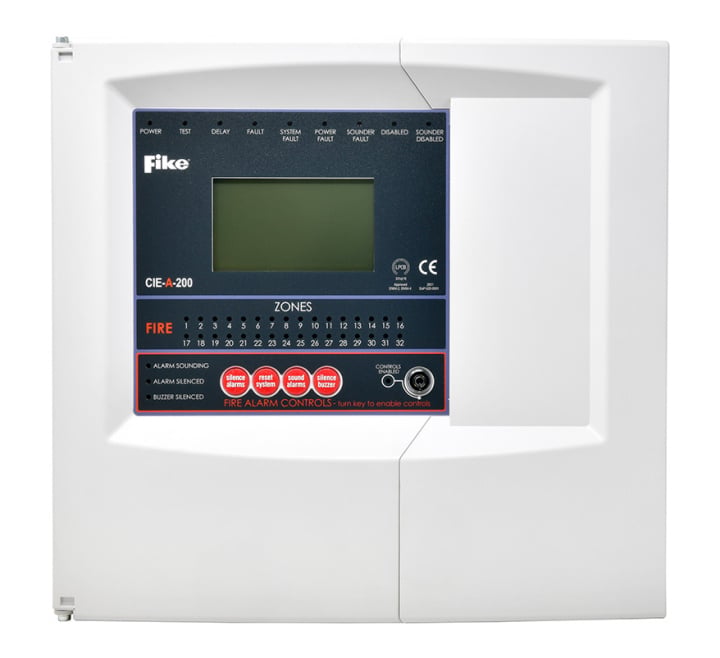

Fike CIE-A-200 1 Loop Addressable Fire Panel (520-0001)
Discontinued
Alternative Products
Product Details for Fike CIE-A-200 1 Loop Addressable Fire Panel (520-0001)
The Fike CIE-A-200 Addressable Fire Alarm Control Panel (520-0001) is a one loop panel able to support up to 200 devices. It accommodates a maximum loop length of 2,000 Metres, two configurable monitored input circuits, 2 configurable monitored output circuits, 2 configurable and 1 fault relay. It can also support up to 8 repeater panels using a Peripheral bus circuit.
The CIE-A-200 supports existing Fike addressable devices. The operating parameters of the devices are configured either from the panel or via the OSP programming software and are then stored within the Flash memory of the device itself. This enhanced digital protocol means less information is needed to be sent between the detector and the host control panel, resulting in faster, more reliable communication.
Key Features of the 520-0001 |
|---|
|
> 1 loop addressable fire alarm panel
> Compatible with Fike's ASD addressable range of devices > Faster and easier installation > Improved and easier to use OSP software > Simple, yet intuitive end user interface > Enhanced service and fault finding tools > Utilises soft addressing to eliminate physical address changes at each device > Faster, more reliable communication between panel and devices > Supports up to 200 Fike addressable devices > Supports a maximum loaded loop length of 2km > Accommodates 32 fire zones and 32 I/O zones > Fire and fault event log up to 1000 events > Provides configurable monitored input and output circuits, configurable relays and fault relay > Peripheral bus circuit to add up to 8 repeater panels > LCD graphical user display |
| Brand | Fike |
|---|---|
| Manufacturer Part No. | 520-0001 |
| Product Series | CIE-A-200/CIE-A-400 |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 1 |
| Max No. of Loops Possible | 1 |
| Number of Zones | 32 |
| Protocol Compatibility | Fike SITA |
| Colour | White |
| Warranty | 2 Years |
FAQ’s for Fike CIE-A-200 1 Loop Addressable Fire Panel (520-0001)
Product Specification for Fike CIE-A-200 1 Loop Addressable Fire Panel (520-0001)
| Dimensions Panel (WxHxD): | 353mm x 333mm x 117mm |
| Operating Temperature: | +5°C to +40°C |
| IP Rating | IP30 |
| Mains Supply Input: | 230V AC Nominal |
| Standby Battery Requirement: | 2 x 7Ah 12V Sealed Lead Acid (2 x 12 Ah with extended battery box) |
| Max Number of Loops: | 1 |
| Max Loop Length: | 2000 Metres |
| Max Conductor Resistance: | 24 Ohms |
| Loop Loading: | 450 DLU (200 Devices Max)* |
| Loop Operating Voltage: | 40V DC |
| Standby: | 24V DC |
| Max Loop Current: | 500mA |
| Number of Supported Zones: | 32 |
| LCD Display: | LCD Graphical Display |
| Device Labels: | 31 Characters |
| Event Log: | 1000 Events |
| Repeater Panels: | 8 Max |
| Aux Power Output: | 30V DC 450mA |
| Inputs and Outputs: | Inputs: 2 x Monitored Inputs (3k3 EOL, 680R Firing Resistor) Outputs: 3 x Volt Free Relay (30V DC @ 1A Max) Monitored Outputs 2 x (24V DC @ 500mA Max, 10k EOL). Each monitored output may be configured as a Conventional Sounder Circuit or a Remote Fire Circuit or as a Common Fault output. |
