Espire 10 Year Longlife Battery Smoke & Heat Multisensor Alarm (ES1MUL)
Product Details for Espire 10 Year Longlife Battery Smoke & Heat Multisensor Alarm (ES1MUL)

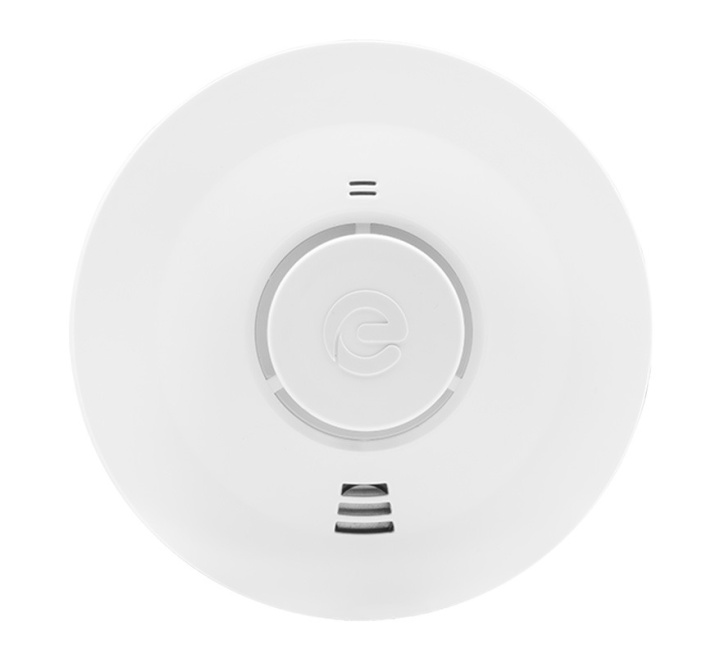

The Espire ES1MUL is a Grade F1 standalone multi-sensor fire alarm combining optical smoke and thermistor heat sensing technologies in a single battery-powered unit. Certified to both BS EN 14604:2005 and BS 5446-2:2003, the dual-sensor alarm continuously monitors smoke particle density and temperature shifts to accelerate response times to fast-flaming and slow-smouldering fires, while reducing false activations caused by airborne steam or dust.
Powered by a non-replaceable 10-year sealed 3V lithium battery (CR17450), the alarm provides maintenance-free operation over its full service life. System features include automatic self-diagnostic sensor testing, a 3-LED status interface, an 85dB sounder at 3 metres, a 10-minute alarm hush function, a 12-hour fault silence option, and a 24-hour post-alarm memory indicator.
While the ES1MUL does not support hardwired interlinking, wireless RF interlinking across up to 28 devices is supported via the optional ES1RF2 module. The unit mounts onto an anti-tamper lock-in base and is housed in a flame-retardant, UV-stabilised ABS enclosure (Ø132mm x 53mm, UL94-V0 rated), backed by a 5-year guarantee.
Key Features of the ES1MUL |
|---|
|
> Battery powered
> 10 year sealed battery > Auto Sensor Test - Alarm self-checks sensor > Interconnect alarms through optional RF-Link module > Hush function – silences an alarm activation for 10 minutes > Anti-Tamper Lock-In Base > Certified to EN 14604:2005 + AC:2008 & BS 5446-2:2003 > Grade F1 installations |
| Brand | Espire |
|---|---|
| Manufacturer Part No. | ES1MUL |
| Warranty | 5 Years |
| Colour | White |
| Interlink Options | Stand-Alone Alarms (RF Upgrade Available) |
| Detectable Medium | Smoke, Heat |
| Sensor Type | Combined Optical and Thermistor |
| Primary Power Source | Longlife Batteries (Lithium) |
| British Standard Grade (BS5839-6) | Grade F1 (Battery Powered - Sealed Longlife) |
| Approvals | TÜV Certified |
FAQ’s for Espire 10 Year Longlife Battery Smoke & Heat Multisensor Alarm (ES1MUL)
Product Specification for Espire 10 Year Longlife Battery Smoke & Heat Multisensor Alarm (ES1MUL)
| Product dimensions: | ø132mm x 60.5mm |
| Colour: | White |
| Materials: | UL94-V0 rated UV stabilised ABS |
| Mounting: | Ceiling |
| Recommended installation locations: | Living areas, loft areas, bedrooms, escape routes & stairways |
| Indication: | 2 LEDs; Yellow - fault, Red - fire |
| Auto dim power LED: | No |
| Manual test button: | Checks sensor, electronics & sounder |
| Technical: | Sensor type: Multi sensor - Sensor 1 Optical Smoke, Sensor 2 Heat Heat detection class: A1 Heat detection temperature: 58oC Sounder output: 85 @ 3m Hush function: Alarm hush - 10mins, Fault hush - 12hrs Installation grade: F1 |
| Supply, power & backup: | Supply type: Battery powered Supply voltage: 3 VDC Battery backup: Non-replaceable 10 year battery Battery type: 3V lithium Battery size: CR17450 Battery chemistry: Lithium Battery lifetime: 10 year |
| Interconnectability: | Wired interconnect supported: No RF LINK supported: Yes, requires ES1RF2 Max. supported wired & RF-LINK interconnected devices: 28 |
| Environment: | Operating temp: 0 to +40oC Relative humidity: 95% (non condensing) |
| Accessories: | ES1RF2 Alarm RF-Link Module 2 ES1MP: Alarm Masking Tape ES1MTW: Alarm Multi Tool (2 pack) White ES1MTB: Alarm Multi Tool (2 pack) Black |
| Features: | Dust compensation, Insect mesh, Lock-in base, 24 hour memory function, Clear LED indication status |
| Warranty: | 5 years |
| Weight: | 0.253kg |
