Espire 10 Year Longlife Battery Heat & Carbon Monoxide Alarm (ES1CHL)
Product Details for Espire 10 Year Longlife Battery Heat & Carbon Monoxide Alarm (ES1CHL)

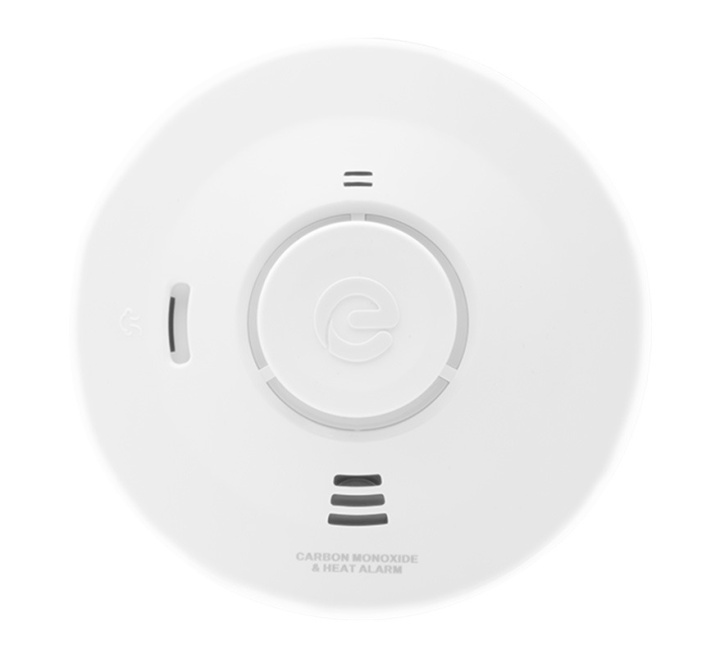

The Espire ES1CHL is a Grade F1 standalone carbon monoxide and heat multi-sensor alarm powered by a non-replaceable 10-year sealed 3V lithium battery. Certified to both EN 50291-1:2018 and BS 5446-2:2003, the unit combines an electrochemical CO detection cell with an A2 heat sensor (58°C activation threshold) to provide dual protection against toxic gas accumulation and rapid temperature rises while preventing false alarms in kitchens and fuel-burning spaces.
Designed for maintenance-free operation over its full service life, the alarm includes automatic self-diagnostic sensor testing, a 3-LED status interface, an 85dB sounder at 3 metres, a 10-minute hush button, a 12-hour fault silence option, and a 24-hour post-alarm memory visual indicator. While the ES1CHL does not feature hardwired interconnect capabilities, it supports wireless RF interlinking across up to 28 devices via the optional ES1RF2 module. The unit mounts onto an anti-tamper lock-in base and is housed in a UV-stabilised, flame-retardant ABS enclosure (Ø132mm x 59mm, UL94-V0 rated).
Key Features of the ES1CHL |
|---|
|
> 10 year sealed battery
> Auto Sensor Test - Alarm self-checks sensor > Interconnect alarms through optional RF-Link module > Hush function – silences an alarm activation for 10 minutes > Anti-Tamper Lock-In Base > Certified to EN 50291-1:2018 & BS 5446-2:2003 > Grade F1 installations |
| Brand | Espire |
|---|---|
| Manufacturer Part No. | ES1CHL |
| Warranty | 5 Years |
| Colour | White |
| Interlink Options | Stand-Alone Alarms (RF Upgrade Available) |
| Detectable Medium | Heat, Carbon Monoxide (CO) |
| Sensor Type | Combined Thermistor and Electrochemical |
| Primary Power Source | Longlife Batteries (Lithium) |
| British Standard Grade (BS5839-6) | Grade F1 (Battery Powered - Sealed Longlife) |
| Approvals | TÜV Certified |
FAQ’s for Espire 10 Year Longlife Battery Heat & Carbon Monoxide Alarm (ES1CHL)
Product Specification for Espire 10 Year Longlife Battery Heat & Carbon Monoxide Alarm (ES1CHL)
| Product dimensions: | ø132mm x 60.5mm |
| Colour: | White |
| Materials: | UL94-V0 rated UV stabilised ABS |
| Mounting: | Ceiling |
| Recommended installation locations: | Fuel burning areas & kitchen areas |
| Indication: | 3 LEDs; Green - power, Yellow - fault, Red - fire / CO |
| Auto dim power LED: | No |
| Manual test button: | Checks sensor, electronics & sounder |
| Technical: | Sensor type: Multi sensor - Sensor 1 Carbon Monoxide, Sensor 2 Heat Heat detection class: A1 Heat detection temperature: 58oC Sounder output: 85 @ 3m Hush function: Alarm hush - 10mins, Fault hush - 12hrs CO Detection levels: Low <50ppm, Low <100ppm, High <180ppm, Installation grade: F1 |
| Supply, power & backup: | Supply type: Battery powered Supply voltage: 3 VDC Battery backup: Non-replaceable 10 year battery Battery type: 3V lithium Battery size: CR17450 Battery chemistry: Lithium Battery lifetime: 10 year |
| Interconnectability: | Wired interconnect supported: No RF LINK supported: Yes, requires ES1RF2 Max. supported wired & RF-LINK interconnected devices: 28 |
| Environment: | Operating temp: 0 to +40oC Relative humidity: 95% (non condensing) |
| Accessories: | ES1RF2 Alarm RF-Link Module 2 ES1MP: Alarm Masking Tape ES1MTW: Alarm Multi Tool (2 pack) White ES1MTB: Alarm Multi Tool (2 pack) Black |
| Features: | Lock-in base, 24 hour memory function, Clear LED indication status |
| Warranty: | 5 years |
| Weight: | 0.237kg |
