SKU
MAGAUXISOWP
£18.52
£15.43

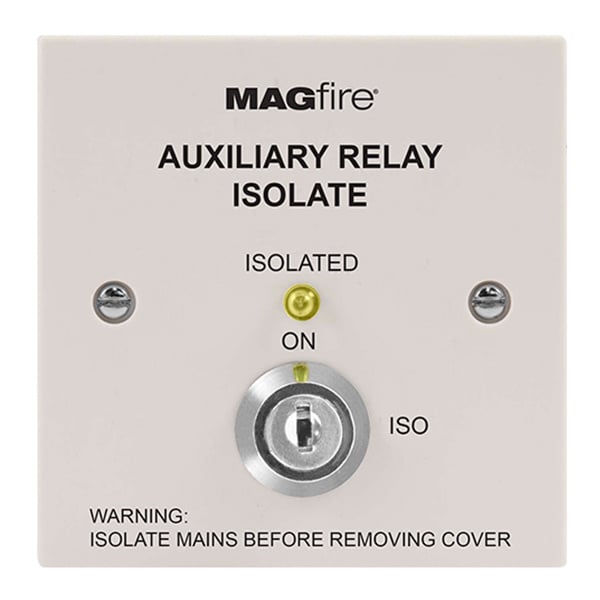

ESP MAGfire Auxiliary Isolator Relay Switch - White
- Buy 10 for £18.23 £15.19 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP MAGfire Auxiliary Isolator Relay Switch - White
The ESP MAGAUXISOWP is designed to provide two sets of 8 amp clean changeover contacts, either from a switch -ve trigger input or via the isolate keyswitch. The product requires a 24v dc supply.
Key Features of the MAGAUXISOWP |
|---|
|
> Suitable for mains switching up to 8 amp
> Secure key switch enables safety for maintenance and offers protection against tamper > External trigger option > Programmable internal buzzer for activation > Clear operation LED indication > Surface or recess mount > 3 year warranty |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | MAGAUXISOWP |
Write Your Own Review
FAQ’s for ESP MAGfire Auxiliary Isolator Relay Switch - White
No questions yet. Be the first to ask the question!
Product Specification for ESP MAGfire Auxiliary Isolator Relay Switch - White
| Switch Type | Key |
| Relay Type | Double Pole Double Throw |
| Power Indicator | Green LED |
| Wire Gauge | Up to 2.5mm |
| Material | ABS, White |
| Dimensions | 86.5 x 86.5 mm |
| Outputs - Relay Rating | 240VAC @8Amps each |
| Power - Operating Voltage | 24VDC |
