Discontinued Product
This product is part of Eaton's legacy addressable fire systems range which are obsolete. Customers are recommended to upgrade to Eaton's xDetect range of addressable control equipment which retains compatibility with existing Eaton addressable peripherals. Please contact us for more information.

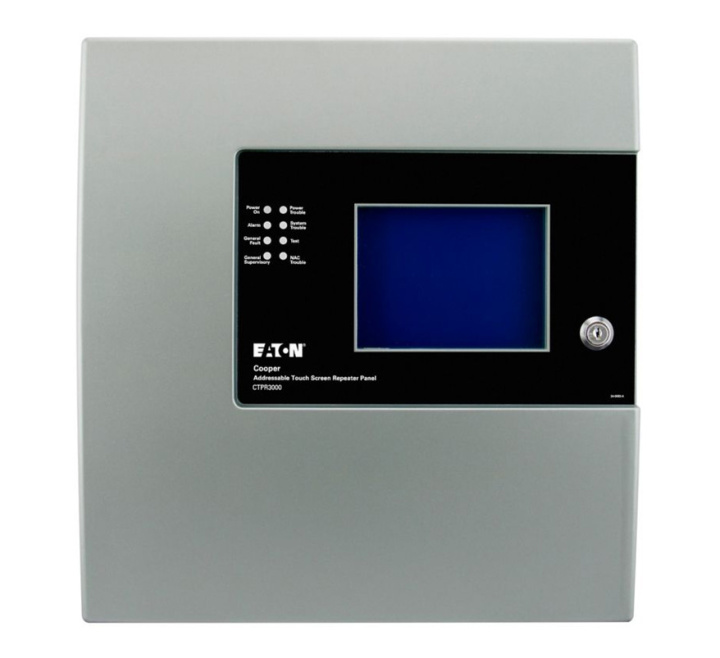

Eaton Addressable Touch Screen Repeater Panel (CTPR3000)
SKU
CTPR3000
Eaton Addressable Touch Screen Repeater Panel (CTPR3000)
Discontinued
Alternative Products
Product Details for Eaton Addressable Touch Screen Repeater Panel (CTPR3000)
Fire detection system repeater panels provide a suitable solution to public spaces such as hotels, lobbies or restaurants where the main panel needs to be installed in a restrictive or busy area where it may be damaged and fail.
The addressable touch-screen repeater panel is designed to work as either an active repeater, providing a full indication of events and controls or as a passive repeater panel giving partial event information and no controls.
Easy to install and commission, it also updates automatically through the network.
Key Features of the CTPR3000 |
|---|
|
> Large versatile touch-screen user interface
> Multi-language selection capability > Full network capability up to 126 panels > Programmable as an active or passive repeater > Plug and play (all system information is uploaded through the network) > Integral battery and power supply > Aesthetically pleasing, compact panel > Simple to operate end user touch-screen interface > Requires no programming (plug and play) and is easily set up without a laptop > Full system visibility and control |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CTPR3000 |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Colour | Grey |
| Warranty | 1 Year |
FAQ’s for Eaton Addressable Touch Screen Repeater Panel (CTPR3000)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Addressable Touch Screen Repeater Panel (CTPR3000)
| Product: | Eaton Addressable Touch Screen Repeater Panel |
| Catalogue no.: | CTPR3000 |
| Dimensions: | W:357mm x H:375mm x D:95mm |
| Standards: | EN54 Pt 4 |
| Mains input voltage: |
230V ac +10%/-15% |
| Operating voltage: |
24Vdc |
| System indicators: |
Power on, fire, fault, test, disable and scroll |
| System controls: |
Silence alarms, evacuate and reset (full system control if set as active) |
| Input ports: |
RS232 (for connection of programmer) |
| Battery: | 2 x 12V 3.2Ah |
| Standby duration: |
24 hours |
| Operating temperature: | -5oC to +40oC (75% max humidity, non condensing) |
| Construction: | PC/ABS |
| Colour: | Graphite |
| IP rating: | IP30 |
| Compatibility: |
Eaton intelligent addressable fire systems |
| Weight: | 8 kg |
