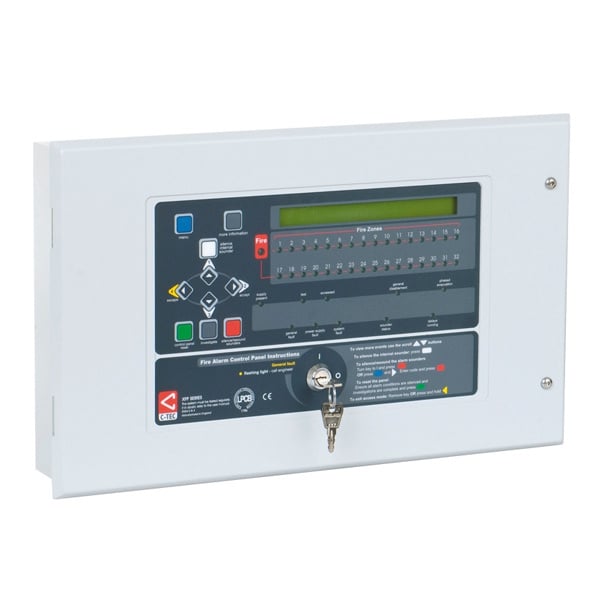

C-TEC XFP 32 Zone Addressable Repeater Panel (All Protocols) (XFP510-32)
Product Details for C-TEC XFP 32 Zone Addressable Repeater Panel (All Protocols) (XFP510-32)
Each Repeater requires its own dedicated Mains power and battery back-up supply.
Communication between the Master panel and Repeaters is achieved using network communication cards - one per Repeater (fitted as standard) and one per Master (available as an optional extra), wired in 1.5 mm2 two-core screened fire resistant cable. The total network length for a Repeater network must not exceed 500 metres.
Each Repeater offers all the functions and controls of an XFP Master panel (access levels 1, 2 and 3).
Repeaters do not include an RS232 PC programming connector. System programming must be carried out at the XFP Master panel using the panel’s upload/download programming tools and a Windows PC. Please refer to the XFP Master panel instructions for details.
A fault relay is included in all Repeaters.
Key Features of the XFP510-32 |
|---|
|
> Can be used to repeat the functions of an XFP Main panel at remote parts of a site (e.g. all potential fire service entrances).
> Offers all of the functions and controls of an XFP Main panel (access levels 1, 2 and 3). > Includes an on-board fault relay. > Requires its own dedicated Mains power and battery back-up supply. > A maximum of eight XFP Repeaters can be connected to one non-networked XFP Main panel. > Communication between the XFP Main panel and Repeater requires an AFP711 network driver card (fitted as standard in all XFP510-32s, available as an optional extra on Main XFP 32 Zone panels). > Repeater network is non-redundant and wired in 1.5 mm2 two-core screened fire resistant cable. Network length must not exceed 500 metres. |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | XFP510-32 |
| Product Series | XFP |
| Primary Power Source | Mains Powered (230V) |
| Number of Zones | 32 |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Hochiki ESP |
| Warranty | 1 Year |
FAQ’s for C-TEC XFP 32 Zone Addressable Repeater Panel (All Protocols) (XFP510-32)
Product Specification for C-TEC XFP 32 Zone Addressable Repeater Panel (All Protocols) (XFP510-32)
| Protocol/compatibility | Compatible with C-TEC's XFP CAST, Apollo XP95/Discovery and Hochiki ESP main panels. |
| Mains supply | 230V 50/60Hz. |
| Mains rated current | 680mA maximum. |
| Internal power supply | 27Vdc nominal. |
| Total output current limited to | 3A @ 230Vac (Imax.A 250mA; Imin. 70mA). |
| Quiescent current | TBC. |
| Max battery size and type | 2 x 12V 7Ah VRLA connected in series. |
| Auxiliary relays | Fault (Failsafe; Capable of switching 1A @ 30V DC; Must not be used for switching Mains voltages). |
| PC connection | None. |
| Indicators | 2 line x 40 character backlit display; 32 Zonal LEDs, General Fire; Energised; Pre-Alarm; Remote Output Activated; Remote Output Disabled; Accessed; Disablement; Test; Silenced; General Fault; System Fault. |
| Expansion connections | On board AFP711 network driver card facilitates the connection of additional XFP Repeaters. |
| Product dimensions (mm) | 410 W x 250 H x 80 D mm (base); 439 W x 274 H x 7 D mm (lid). |
| Construction & finish | Metal. |
| IP Rating | TBC. |
| Weight | 4.5kg (no batteries). |
| Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
| Network specification | Max. no. of Repeaters per Main XFP: 8 (any mix); Max. total length of Repeater network: 500m; Cabling requirements: 1.5mm2 two core screened fire resistant. Network is non-redundant. |
