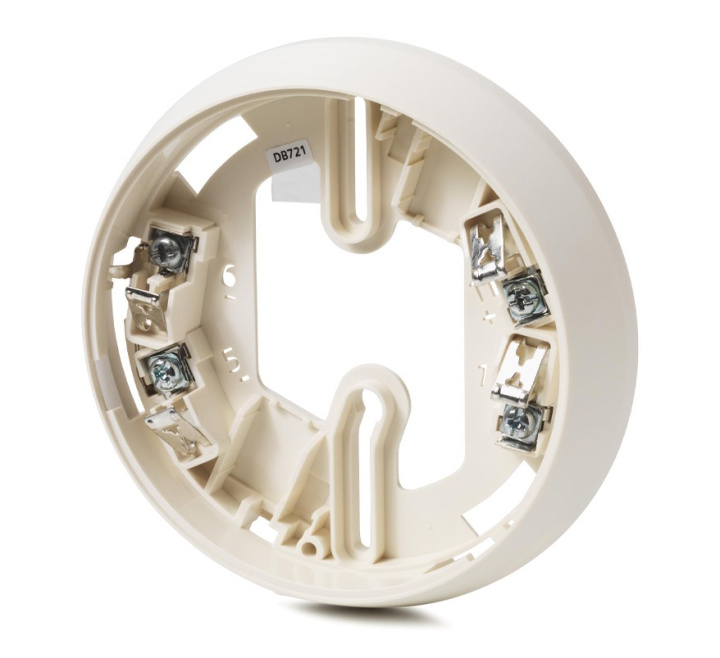

Siemens DB721D Cerberus PRO Detector Base (for use with ASA Detector) (S54319-F15-A1)
SKU
S54319-F15-A1
£7.19
£5.99
Siemens DB721D Cerberus PRO Detector Base (for use with ASA Detector) (S54319-F15-A1)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens DB721D Cerberus PRO Detector Base (for use with ASA Detector) (S54319-F15-A1)
Universal base with extra large mounting slots facilitates use with a wide variety of back boxes and other electrical accessories.
Connecting terminals for cable diameter at 1.6 mm2. Place for auxiliary terminals 2 x DBZ1190-AA and 2 x DBZ1190-AB.
For the OOH740 point detector in the series Cerberus PRO in conventional mode when connected on detector lines compliant to BS 5839 (part 1).
Back entry for recess supply wiring. 2 breakouts on the side for surface wiring of cables up to 8 mm in diameter. By using the detector base with loop contact the detector line is not interrupted even if no point detector is mounted.
Key Features of the S54319-F15-A1 |
|---|
|
> Extra large mounting slots
> Universal base > For use with a wide variety of backboxes and other electrical accessories > For recess-mounted supply lines > For surface-mounted supply lines with cables up to max. Ø 8 mm > The detector base DB721D has a loop contact > When using the DB721D, the detector line is not interrupted when there is no point detector mounted in the detector base |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | DB721D |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens DB721D Cerberus PRO Detector Base (for use with ASA Detector) (S54319-F15-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens DB721D Cerberus PRO Detector Base (for use with ASA Detector) (S54319-F15-A1)
| Product: | Siemens DB721D Detector base (for use with ASA detector) |
| Product code: | S54319-F15-A1 |
| Dimensions: | Diameter:117mm x H:23mm |
| Cable capacity: | 0.2 - 1.6mm2 |
| Colour: |
Pure white (RAL9010) |
| Weight: | 0.059 kg |
