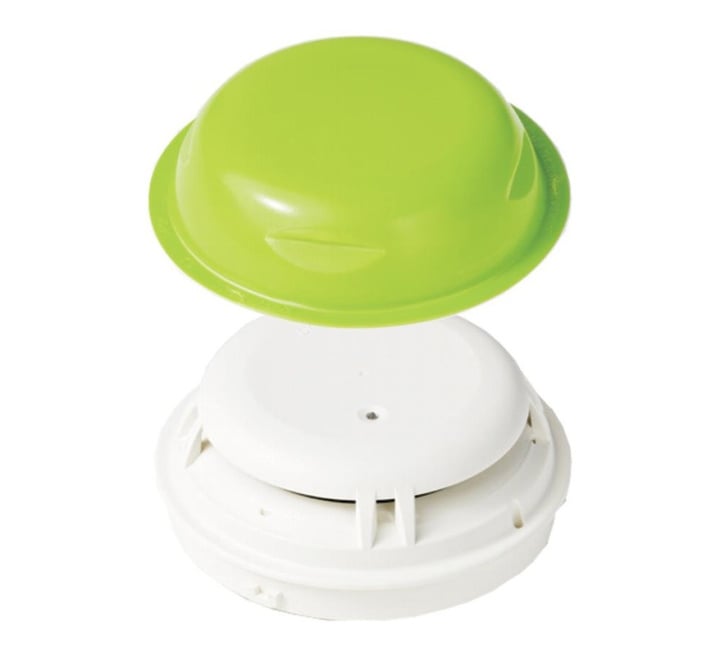

Siemens OOH740 Cerberus PRO ASA Dual Optical Heat Multi-Sensor Detector (S54320-F7-A3)
Product Details for Siemens OOH740 Cerberus PRO ASA Dual Optical Heat Multi-Sensor Detector (S54320-F7-A3)
The Siemens OOH740 ASA detector is for the detection of flaming fires caused by the combustion of liquid and solid matters, as well as smoldering fires. For reliable fire detection in environments with deceptive phenomena.
Works according to the scattered-light principle with two sensors, optical forward and backward scattering. Opto-electronic sampling chamber blocks disturbing extraneous light but optimally detects both dark and light smoke particles. Two additional heat sensors increase the fire detector’s immunity to deceptive phenomena.
In the collective mode you have the possibility to choose between three parameter sets: Standard Plus (PS1), Suppression (PS5) and High Sensitive Fast (PS9).
The base must be ordered separately.
Key Features of the S54320-F7-A3 |
|---|
|
> Shock resistant, protection against sabotage
> Signal processing with ASAtechnology (Advanced Signal Analysis) > Time and process-dependent detection behavior > High degree of immunity to faults in power electronics > Protected electronics, high-quality components > Sophisticated sensors and electronic monitoring > The integrated line separator that locates the defective part on the detector bus of the control panel and isolates between two detectors > Supports automatic detector test with DFTtechnology™ (OOH740, VdS 3860 certified) > Integrated alarm indicator (AI), 360° visibility > Up to two external alarm indicators can be connected per detector > Address automatically issued during commissioning > Same detector base can be used for every detector type, for surface-mounted and recess-mounted supply lines > OOH740 only: Can also be used on a collective detector line or a conventional detector line |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | OOH740 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Warranty | 5 Years |
FAQ’s for Siemens OOH740 Cerberus PRO ASA Dual Optical Heat Multi-Sensor Detector (S54320-F7-A3)
Product Specification for Siemens OOH740 Cerberus PRO ASA Dual Optical Heat Multi-Sensor Detector (S54320-F7-A3)
| Standard | CEA 4021, EN 54-5, EN 54-7, EN 54-17 |
| Protection category | IP40; IP42 with detector base seal |
| Operating voltage | DC 12…33 V |
| Operating current | 0.25 mA |
| Operating temperature | -25…55 °C |
| Storage temperature | -30...+70 °C |
| Quiescent current | ~170...250 μA |
| Ext. alarm indicator | 2 |
| System compatibility | C-NET -> FS720 |
| Communication protocol | C-NET, Collective/Conventional |
| Relative humidity | ≤95 % rel. |
| Dimensions (Ø x H) | 106 x 43 mm |
| Color | Pure white, ~RAL 9010 |
