Discontinued Product
BLE RUSKIN 3.5W IP65 LED Emergency Bulkhead (EL-112950)
Discontinued
Alternative Products

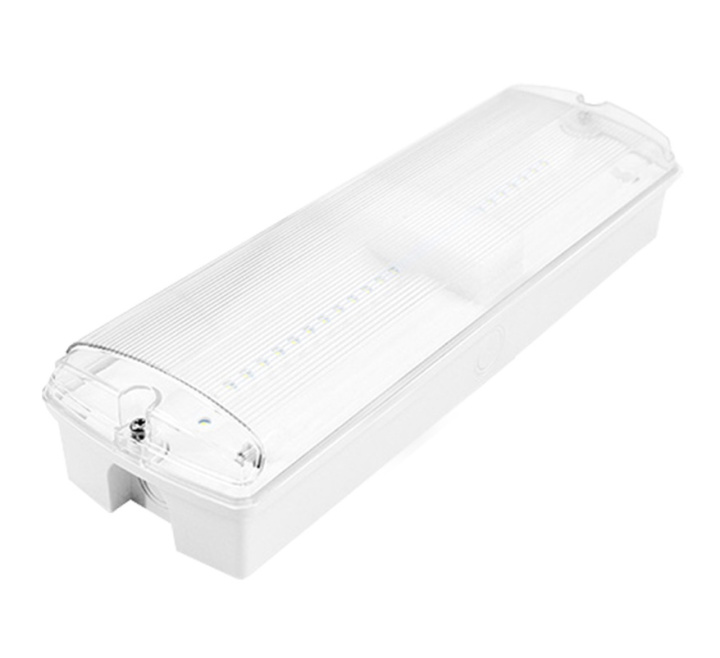

Product Details for BLE RUSKIN 3.5W IP65 LED Emergency Bulkhead (EL-112950)
The BLE RUSKIN LED Emergency Bulkhead is a traditional-looking emergency bulkhead that can be used both indoors and outdoors. It has an LED indicator which shows the status of the unit and whether it is charging.
The RUSKIN Emergency Bulkhead can be mounted on either a wall or a ceiling, making it versatile and easy to install. It has a hinged gear tray that makes it easy to access the battery and other components of the fitting. It has very low power consumption, so it is a cost-effective way to provide emergency lighting. It has IP65 protection, which means it is dust-tight and protected against water ingress from all directions.
The RUSKIN LED Emergency Bulkhead comes with a 3-year warranty for peace of mind.
Key Features of the EL-112950 |
|---|
|
> LED indicator
> Wall or ceiling mounted > Hinged gear tray > 24 hour recharge time > Low power consumption > Surface mounted > IP65 rated > 3 year warranty |
| Brand | BLE Lighting & Power |
|---|---|
| Manufacturer Part No. | EL-112950 |
FAQ’s for BLE RUSKIN 3.5W IP65 LED Emergency Bulkhead (EL-112950)
Product Specification for BLE RUSKIN 3.5W IP65 LED Emergency Bulkhead (EL-112950)
GENERAL DATA
| Light Source: | SMD LED |
| Light Source Replaceable: | No |
| Colour/Finish: | White |
| Material: | Polycarbonate |
| Diffuser Type: | Prismatic |
| Diffuser Material: | Polycarbonate |
| IP Rating: | IP65 |
| Mounting Type: | Surface |
| Warranty: | 3 Years |
| Life Time Hours: | 20,000 |
DIMENSIONS & WEIGHT
| Length: | 352mm |
| Width: | 110mm |
| Depth: | 68mm |
| Weight: | 480g |
ELECTRICAL
| Input Voltage: | 220-240V |
| Input Frequency: | 50Hz |
| Wattage: | 3.5W |
| Classification: | Class II |
| Operating Temperature: | 0 to 40°C |
| Power Factor: | 0.45 |
OPTICAL
| Colour Temperature: | 6500K |
| CRI: | 80CRI |
| Beam Angle: | 120º |
| Lumen Output: | 190lm |
EMERGENCY
| Battery Type: | Lithium 18650 3.7V |
| Battery Capacity: | 1.5Ah |
| Battery Warranty: | 3 Years |
| Recharge Time: | 24 Hours |
| Battery Replaceable: | No |
| Mode of Operation: | Maintained/Non-maintained |
| Test Procedure: | Manual |
| Emergency Duration: | 3 Hours |
| Emergency Lumen Output: | 130lm |
