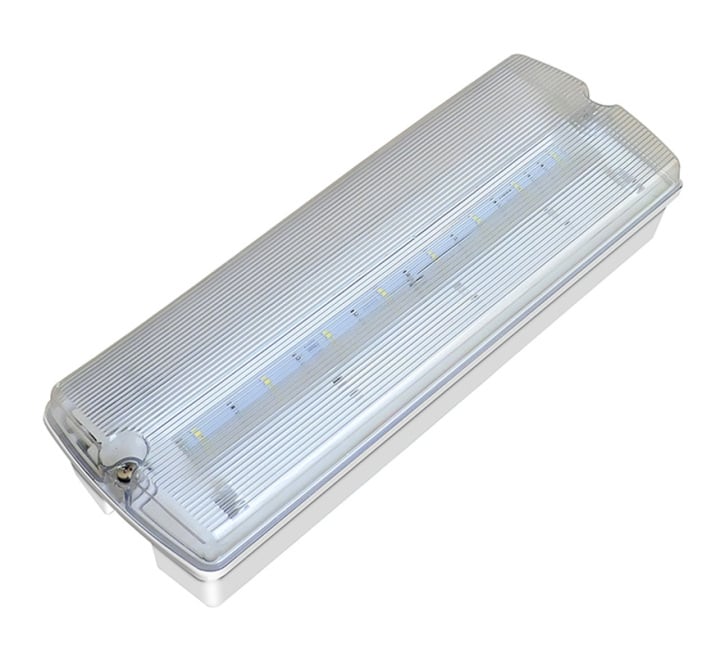

BLE NORFOLK 6W IP65 LED Emergency Bulkhead (EL-110150)
SKU
EL-110150
£17.22
£14.35
The BLE NORFOLK LED Emergency Bulkhead is suitable for ceiling or wall installations and has a traditional design making it ideal for retrofit projects.
- Buy 10 for £16.96 £14.13 each and save 2%
In Stock
Product Details for BLE NORFOLK 6W IP65 LED Emergency Bulkhead (EL-110150)
The BLE NORFOLK LED Emergency Bulkhead is a versatile and reliable emergency bulkhead that is perfect for both indoor and outdoor applications. It is suitable for ceiling or wall installations and has a traditional design making it ideal for retrofit projects.
Key Features of the EL-110150 |
|---|
|
> Health charge indicator
> 24 hour recharge time > LiFePO4 18650 3.2V battery > Low power consumption > Surface mounted > Easy install hinged gear tray > Supplied with self-adhesive exit legend pack (EU Legend) |
| Brand | BLE Lighting & Power |
|---|---|
| Manufacturer Part No. | EL-110150 |
Write Your Own Review
FAQ’s for BLE NORFOLK 6W IP65 LED Emergency Bulkhead (EL-110150)
No questions yet. Be the first to ask the question!
Product Specification for BLE NORFOLK 6W IP65 LED Emergency Bulkhead (EL-110150)
GENERAL DATA
| Light Source: | SMD LED |
| Light Source Replaceable: | No |
| Colour/Finish: | White |
| Material: | Polycarbonate |
| Diffuser Type: | Prismatic |
| Diffuser Material: | Polycarbonate |
| IP Rating: | IP65 |
| IK Rating: | IK08 |
| Mounting Type: | Surface |
| Warranty: | 5 Years |
| Life Time Hours: | 50,000 |
DIMENTIONS & WEIGHT
| Length: | 352mm |
| Width: | 110mm |
| Depth: | 65mm |
| Weight: | 515g |
ELECTRICAL
| Input Voltage: | 220-240V |
| Input Frequency: | 50Hz |
| Wattage: | 6W |
| Classification: | Class I |
| Operating Temperature: | 0 to +40ºC |
| Power Factor: | 0.37 |
OPTICAL
| Colour Temperature: | 6500K |
| CRI: | 70CRI |
| Beam Angle: | 125º |
| Lumen Output: | 275lm |
| Viewing Distance: | 20 Metres |
EMERGENCY
| Battery Type: | LiFePO4 18650 3.2V |
| Battery Capacity: | 1.6Ah |
| Battery Warranty: | 5 Years |
| Recharge Time: | 24 Hours |
| Battery Replaceable: | Yes |
| Mode of Operation: | Maintained/Non-Maintained |
| Test Procedure: | Manual |
| Emergency Duration: | 3 Hours |
| Emergency Lumen Output: | 105lm |
