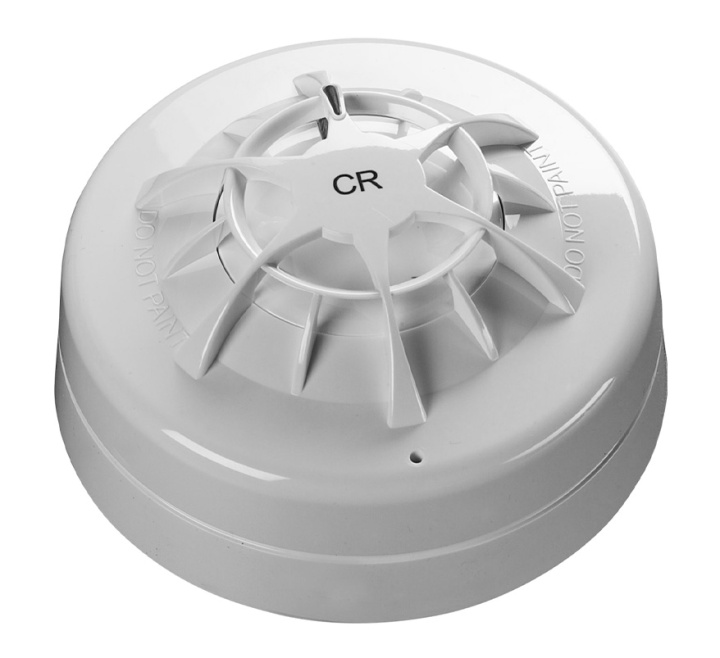

Apollo Orbis Marine CR Heat Detector with Flashing LED (ORB-HT-41017-MAR)
SKU
ORB-HT-41017-MAR
£21.77
£18.14
Apollo Orbis Marine CR Heat Detector with Flashing LED (ORB-HT-41017-MAR)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Apollo Orbis Marine CR Heat Detector with Flashing LED (ORB-HT-41017-MAR)
The Apollo Orbis Marine CR Heat Detector monitors temperature by using a single thermistor which provides a voltage output proportional to the external air temperature. The integral LED on this variant flashes when in a quiescent state.
Key Features of the ORB-HT-41017-MAR |
|---|
|
> Can be used for applications where smoke detectors are unsuitable
> Ideal in environments that are dirty or smoky under normal conditions > Red flashing LED at StartUp confirms the device is operating. > SensAlert®, yellow flashing LED indicates faulty operation > FasTest® takes just four seconds to test and confirm detectors are functioning correctly > The integral LED on this variant flashes when in a quiescent state |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | ORB-HT-41017-MAR |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo Orbis Marine CR Heat Detector with Flashing LED (ORB-HT-41017-MAR)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Orbis Marine CR Heat Detector with Flashing LED (ORB-HT-41017-MAR)
| Product code: | ORB-HT-41017-MAR |
| Description: | Apollo Orbis Marine CR Heat Detector with Flashing LED |
| Dimensions: | Diameter:97mm x D:36mm |
| Applications: | Dusty environments, Marine |
| Heat classification: | CR |
| Colour: | White |
| Materials housing: | Polycarbonate |
| Approvals: | BV, LR, DNV.GL, CCS, ABS, MED |
| Quiescent current: | 95μA (tested @ 24V dc) |
| Polarity: | L1 & L2 are polarity sensitive |
| Min. 'detector active' voltage: | 6V |
| Holding voltage: | 5 to 33V |
| Min. voltage to light alarm LED: | 5V |
| Alarm: | Reset voltage: <1V Reset time: 1s Load: 600Ω |
| Sampling frequency: | Once every 4 seconds |
| Humidity: | 0 - 98% (no condensation or icing) |
| IP Rating: | IP23D |
| Warranty: | 10 year |
| Weight: | 70g |
