Apollo Orbis Marine TimeSaver Base with Continuity Switch (ORB-MB-00001-MAR)
SKU
ORB-MB-00001-MAR
£5.46 £4.55

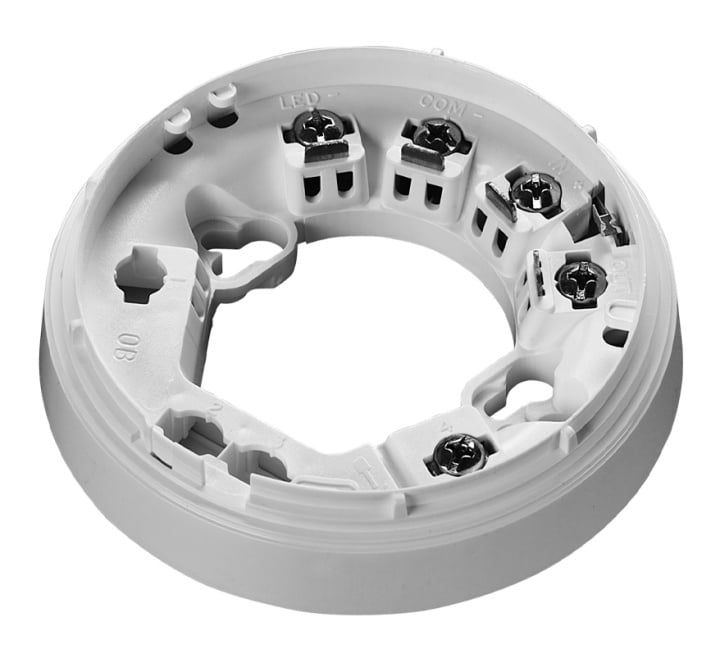

Apollo Orbis Marine TimeSaver Base with Continuity Switch (ORB-MB-00001-MAR)
- Buy 10 for £5.41 £4.51 each and save 1%
The Apollo Orbis Marine TimeSaver Base is a design that provides installers with an open working area with fixing holes shaped to allow a fast mounting procedure.
The Orbis Marine TimeSaver Base has been designed to make installation fast and simple.
The terminal screws are captive screws and will not fall out of the terminals. The base is supplied with the screws unscrewed in order to avoid unnecessary work for the installer.
If it is required that all detectors are fitted with their LEDs facing the same direction, the bases must be fitted to the ceiling observing the marking on the exterior which indicates the position of the LED.
| Key Features |
|---|
| > Grouped terminals to make wiring easy > Two fixing centres > LED alignment mark > Cable stripping guide > Detector locking mechanism |
| Manufacturer | Apollo Fire Detectors |
|---|---|
| MPN | ORB-MB-00001-MAR |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Colour | White |
| Warranty | 10 Years |
