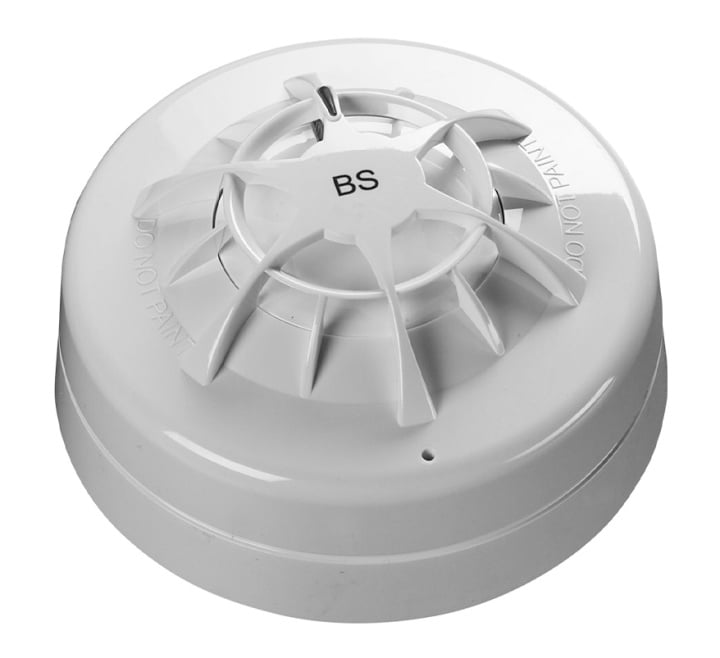

Apollo Orbis Marine BS Heat Detector (ORB-HT-41004-MAR)
SKU
ORB-HT-41004-MAR
£21.77
£18.14
Apollo Orbis Marine BS Heat Detector (ORB-HT-41004-MAR)
In Stock
Product Details for Apollo Orbis Marine BS Heat Detector (ORB-HT-41004-MAR)
The Apollo Orbis Marine BS Heat Detector monitors temperature by using a single thermistor which provides a voltage output proportional to the external air temperature.
Key Features of the ORB-HT-41004-MAR |
|---|
|
> Can be used for applications where smoke detectors are unsuitable
> Ideal in environments that are dirty or smoky under normal conditions > Red flashing LED at StartUp confirms the device is operating. > SensAlert®, yellow flashing LED indicates faulty operation > FasTest® takes just four seconds to test and confirm detectors are functioning correctly |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | ORB-HT-41004-MAR |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Thermistor |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo Orbis Marine BS Heat Detector (ORB-HT-41004-MAR)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Orbis Marine BS Heat Detector (ORB-HT-41004-MAR)
| Product code: | ORB-HT-41004-MAR |
| Description: | Apollo Orbis Marine BS Heat Detector |
| Dimensions: | Dia:97mm x L:36mm |
| Applications: | Dusty environments, Marine |
| Heat classification: | BS |
| Colour: | White |
| Materials housing: | Polycarbonate |
| Approvals: | BV, LR, DNV.GL, CCS, ABS, MED |
| Max. power-up time: | <20 seconds |
| Quiescent current: | 95μA (tested @ 24V dc) |
| Polarity: | L1 & L2 are polarity sensitive |
| Min. 'detector active' voltage: | 6V |
| Holding voltage: | 5 to 33V |
| Min. voltage to light alarm LED: | 5V |
| Alarm: | Reset voltage: <1V Reset time: 1s Load: 600Ω |
| Sampling frequency: | Once every 4 seconds |
| Humidity: | 0 - 98% (no condensation or icing) |
| Operating temperature: | -40 to 70°C |
| IP Rating: | IP23D |
| Warranty: | 10 year |
| Weight: | 70g |
