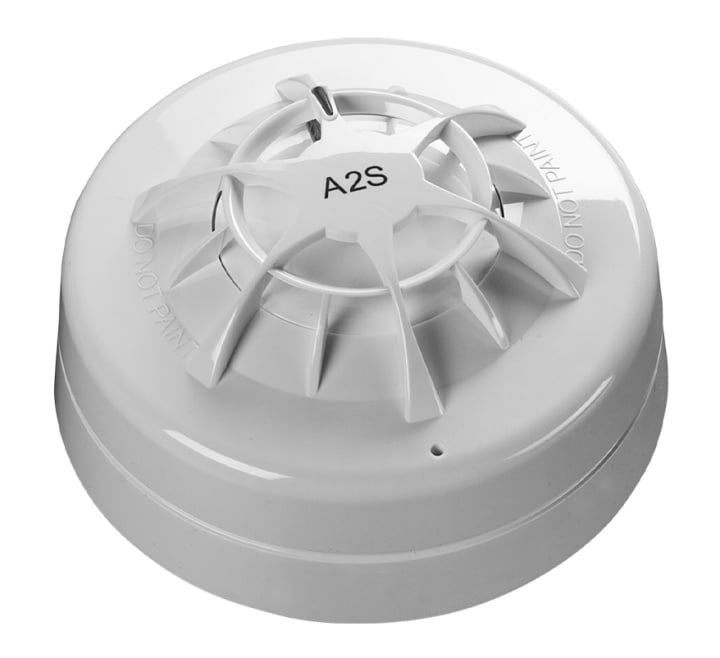

Apollo Orbis Marine A2S Heat Detector (ORB-HT-41002-MAR)
SKU
ORB-HT-41002-MAR
£21.12
£17.60
Apollo Orbis Marine A2S Heat Detector (ORB-HT-41002-MAR)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Apollo Orbis Marine A2S Heat Detector (ORB-HT-41002-MAR)
The Apollo Orbis Marine A2S Heat Detector monitors temperature by using a single thermistor which provides a voltage output proportional to the external air temperature.
Key Features of the ORB-HT-41002-MAR |
|---|
|
> Can be used for applications where smoke detectors are unsuitable
> Ideal in environments that are dirty or smoky under normal conditions > Red flashing LED at StartUp confirms the device is operating. > SensAlert®, yellow flashing LED indicates faulty operation > FasTest® takes just four seconds to test and confirm detectors are functioning correctly |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | ORB-HT-41002-MAR |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo Orbis Marine A2S Heat Detector (ORB-HT-41002-MAR)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Orbis Marine A2S Heat Detector (ORB-HT-41002-MAR)
| Product code: | ORB-HT-41002-MAR |
| Description: | Apollo Orbis Marine A2S Heat Detector |
| Dimensions: | Diameter:97mm x D:36mm |
| Applications: | Dusty environments, Marine |
| Heat classification: | A2S |
| Colour: | White |
| Materials housing: | Polycarbonate |
| Detection principle: | Photo-electric light scattering |
| Approvals: | BV, LR, DNV.GL, CCS, ABS, MED |
| Quiescent current: | 95μA (tested @ 24V dc) |
| Polarity: | L1 & L2 are polarity sensitive |
| Min. 'detector active' voltage: | 6V |
| Holding voltage: | 5 to 33V |
| Min. voltage to light alarm LED: | 5V |
| Alarm: | Reset voltage: <1V Reset time: 1s Load: 600Ω |
| Sampling frequency: | Once every 4 seconds |
| Max. power-up time: | <20 seconds |
| Humidity: | 0 - 98% (no condensation or icing) |
| IP Rating: | IP23D |
| Warranty: | 10 year |
| Weight: | 70g |
