Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.

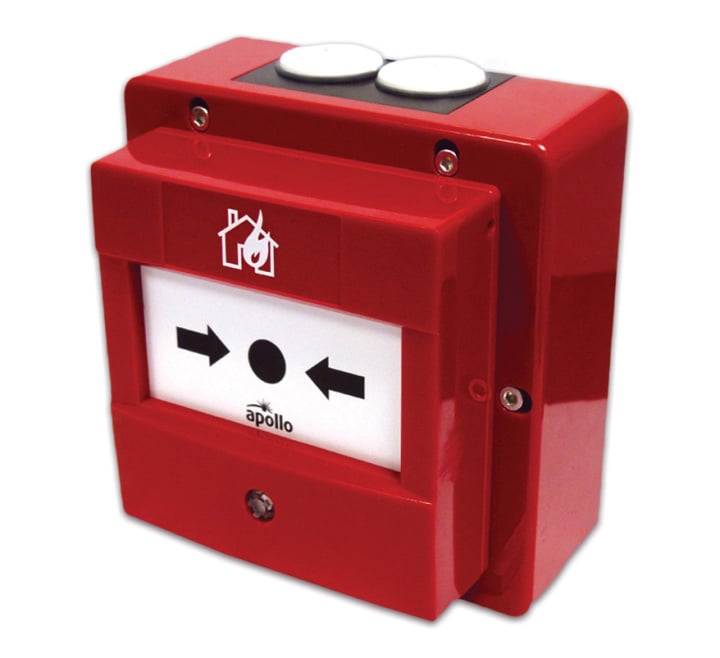

Apollo Intelligent Marine Waterproof Manual Call Point (58200-975MAR)
SKU
58200-975MAR
Apollo Intelligent Marine Waterproof Manual Call Point (58200-975MAR)
Discontinued
Alternative Products
Product Details for Apollo Intelligent Marine Waterproof Manual Call Point (58200-975MAR)
The Marine Waterproof Manual Call Point (MCP) has been designed to operate on a loop of intelligent fire detection devices and when activated interrupts the polling cycle for a very fast response.
The Marine Waterproof Manual Call Point is available with and without isolator. It is intended for outdoor applications or areas where water ingress or high humidity is a problem.
Key Features of the 58200-975MAR |
|---|
|
> Suitable for weatherproof applications
> EN 54-11 Certified > Resettable operating element > 170° viewable LED > XP95 & Discovery compatible > Easy access, front reset mechanism > Ergonomic reset key > Captive screws for easy installation > Flashing Poling LED Option > EN 54-11 Certified > Marine Equipment Directive 2014/90/EU certified |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 58200-975MAR |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Colour | Red |
| Warranty | 10 Years |
FAQ’s for Apollo Intelligent Marine Waterproof Manual Call Point (58200-975MAR)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Intelligent Marine Waterproof Manual Call Point (58200-975MAR)
| Product code: | 58200-975MAR |
| Description: | Apollo Intelligent Marine Waterproof Manual Call Point |
| Dimensions: | W:110mm x L:110mm x D:74mm |
| Key type: | Apollo Manual Call Point reset key |
| Colour: | Red |
| Materials housing: | Polycarbonate |
| Approvals: | LR, CPR, MED |
| Quiescent current: | 100μA (tested @ 24V dc) |
| Protocol voltage: | 5 to 9V peak to peak |
| Power-up surge current: | 1mA |
| Max. power-up time: | 1 second |
| Humidity: | 0 - 95% (no condensation or icing) |
| Operating temperature: | -30 to 70°C |
| IP Rating: | IP67 |
| Warranty: | 3 year |
| Weight: | 324g |
