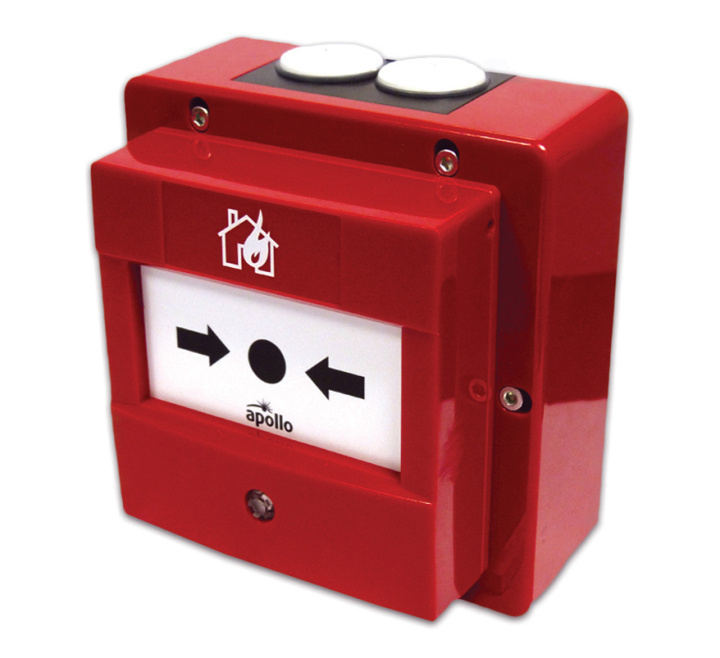

Apollo Intelligent Marine Waterproof Manual Call Point - Isolating (58200-976MAR)
SKU
58200-976MAR
£159.22
£132.68
Apollo Intelligent Marine Waterproof Manual Call Point - Isolating (58200-976MAR)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Apollo Intelligent Marine Waterproof Manual Call Point - Isolating (58200-976MAR)
The Apollo 58200-976MAR Intelligent Marine Waterproof Manual Call Point (MCP) has been designed to operate on a loop of intelligent fire detection devices and when activated interrupts the polling cycle for a very fast response.
The Marine Waterproof Manual Call Point is available with and without isolator. It is intended for outdoor applications or areas where water ingress or high humidity is a problem.
Key Features of the 58200-976MAR |
|---|
|
> Suitable for weatherproof applications
> EN 54-11 Certified > Resettable operating element > 170° viewable LED > XP95 & Discovery compatible > Easy access, front reset mechanism > Ergonomic reset key > Captive screws for easy installation > Flashing Poling LED Option > EN 54-11 Certified > Marine Equipment Directive 2014/90/EU certified |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 58200-976MAR |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Colour | Red |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo Intelligent Marine Waterproof Manual Call Point - Isolating (58200-976MAR)
No questions yet. Be the first to ask the question!
Product Specification for Apollo Intelligent Marine Waterproof Manual Call Point - Isolating (58200-976MAR)
| Product code: | 58200-976MAR |
| Description: | Apollo Intelligent Marine Waterproof Manual Call Point - Isolating |
| Dimensions: | W:110mm x L:110mm x D:74mm |
| Materials housing: | Polycarbonate |
| Key type: | Apollo Manual Call Point reset key |
| Protocol voltage: | 5 to 9V peak to peak |
| Power-up surge current: | 1mA |
| Max. power-up time: | 1 second |
| Quiescent current: | 100μA (tested @ 24V dc) |
| Approvals: | LR, CPR, MED |
| Humidity: | 0 - 95% RH |
| Operating temperature: | -30 to 70°C |
| IP Rating: | IP67 |
| Warranty: | 3 year |
| Weight: | 324g |
