Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.
SKU
55000-391APO

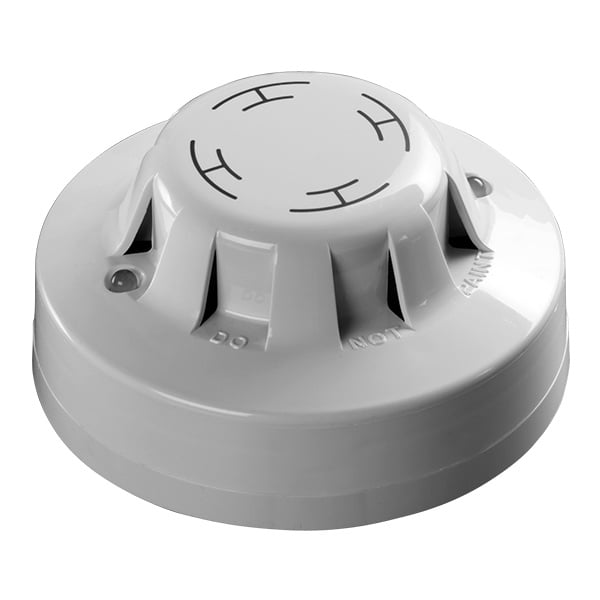

Apollo AlarmSense Integrating Optical Smoke Detector - 55000-391APO
Discontinued
Alternative Products
Product Details for Apollo AlarmSense Integrating Optical Smoke Detector (55000-391APO)
The AlarmSense Integrating Optical Smoke Detector works using the light scatter principle. The detector also has the ability to monitor and discard transient sources of smoke and has a 20 second delay before changing into an alarm state.
System Compatibility
AlarmSense detectors can only be used in a system that is powered and controlled by purpose designed AlarmSense fire control panels. Please contact us for further details on AlarmSense compatible control equipment.
Mounting Bases are sold separately (click here to see compatible bases)
Watch the Video
Key Features of the 55000-391APO |
|---|
|
> Responds well to slow-burning, smouldering fires
> Well suited for bedrooms and escape routes > 360°C visibility of LEDs > Reduces false alarms > Quick and simple installation > Designed to operate in environments where transient levels of smoke may be expected > Reduces false alarms > 20 second delay > Mounting Bases are sold separately (click here to see compatible bases) |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 55000-391APO |
| Primary Power Source | 24V DC |
| System Type | 2-Wire |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Warranty | 10 Years |
FAQ’s for Apollo AlarmSense Integrating Optical Smoke Detector (55000-391APO)
No questions yet. Be the first to ask the question!
Product Specification for Apollo AlarmSense Integrating Optical Smoke Detector (55000-391APO)
| Manufacturer: | Apollo |
| Product Code: | 55000-391 |
| Operating Voltage Range: | 9-33V |
| Polartiy: | Polarity Insensitive |
| Quiescent Current at 15V | <50µA |
| Alarm Current @: | 2 - 8.5V = <1.5mA / 10.5 - 15V = 25 ± 2mA / 18 - 24V = <1.5mA / 33V = <2mA |
| Maximum Reset Voltage: | 2V |
| Reset Time: | 1 Second |
| Max Supply Interruption Time: | 40ms |
| EMC Conformance: | CE Marked to EN50130-4 |
| Dimensions: | 100mm (D) x 42mm (H)(Detector Without Base) - 100mm (D) x 50mm (H) (Detector In Base) |
| Weight: | 100g |
