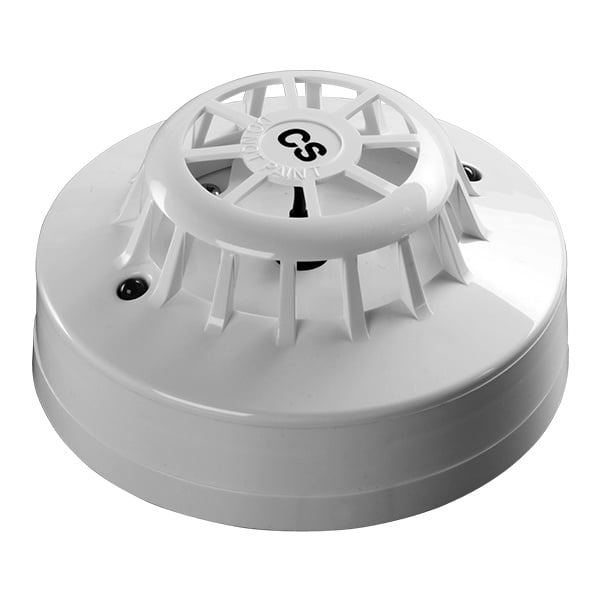

Apollo AlarmSense CS 90°C Heat Detector (55000-193APO)
SKU
55000-193APO
£13.85
£11.54
Apollo AlarmSense CS 90°C Heat Detector - 55000-193APO
In Stock
Product Details for Apollo AlarmSense CS 90°C Heat Detector (55000-193APO)
There are two heat detectors in the AlarmSense range designed to suit a wide variety of operating conditions. A static heat detector (CS) which responds only when a fixed temperature has been reached and a rate-of-rise detector (A1R) which has a fixed upper limit, but in addition, measures the rate of increase in temperature.
System Compatibility
AlarmSense detectors can only be used in a system that is powered and controlled by purpose designed AlarmSense fire control panels. Please contact us for further details on AlarmSense compatible control equipment.
Mounting Bases are sold separately (click here to see compatible bases)
Watch the Video
Key Features of the 55000-193APO |
|---|
|
> Activates upon detecting a fixed temperature of 90°C
> CS detectors are ideal for use in environments with rapid temperature fluctuations such as boiler rooms > Can be used for applications where smoke detectors are unsuitable > Ideal environments that are dirty or smoky under normal conditions > 360°C visibility of LEDs > Reduction of false alarms > Quick and simple installation > Mounting Bases are sold separately (click here to see compatible bases) |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 55000-193APO |
| Primary Power Source | 24V DC |
| System Type | 2-Wire |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Apollo AlarmSense CS 90°C Heat Detector (55000-193APO)
No questions yet. Be the first to ask the question!
Product Specification for Apollo AlarmSense CS 90°C Heat Detector (55000-193APO)
| Manufacturer: | Apollo |
| Product Code: | 55000-190 |
| Operating Voltage Range: | 9-33V |
| Polartiy: | Polarity Insensitive |
| Quiescent Current at 15V | <50µA |
| Alarm Current @: | 2 - 8.5V = <1.5mA / 10.5 - 15V = 25 ± 2mA / 18 - 24V = <1.5mA / 33V = <2mA |
| Maximum Reset Voltage: | 2V |
| Reset Time: | 1 Second |
| Max Supply Interruption Time: | 40ms |
| EMC Conformance: | CE Marked to EN50130-4 |
| Dimensions: | 100mm (D) x 42mm (H)(Detector Without Base) - 100mm (D) x 50mm (H) (Detector In Base) |
| Weight: | 100g |
