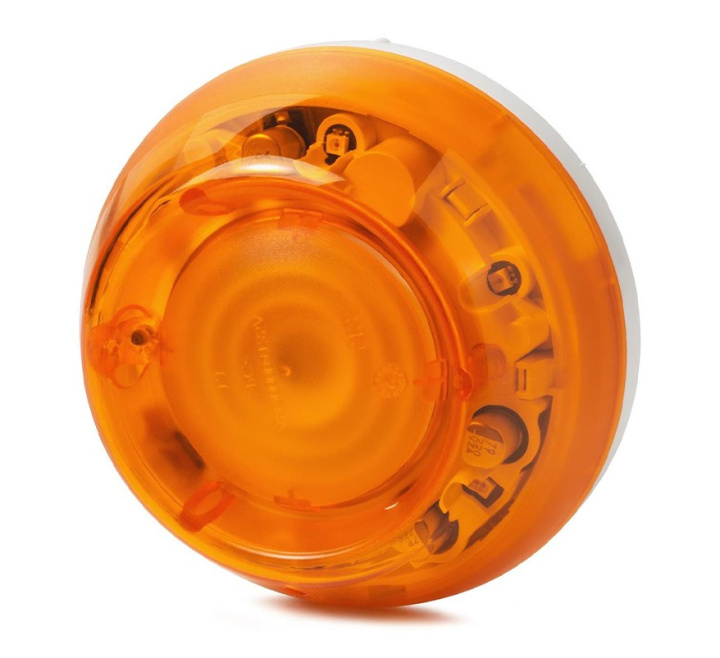

Siemens FDS229-A Cerberus PRO Alarm Sounder Beacon 80-99 dBA (Amber) (No Base) (A5Q00023092)
SKU
A5Q00023092
£138.91
£115.76
Siemens FDS229-A Cerberus PRO Alarm Sounder Beacon 80-99 dBA (Amber) (No Base) (A5Q00023092)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FDS229-A Cerberus PRO Alarm Sounder Beacon 80-99 dBA (Amber) (No Base) (A5Q00023092)
Siemens FDS229-A Alarm sounder with supplementary optical indication, orange.
Acoustic alarming in case of a fire alarm with supplementary orange optical indication, clearly recognizable as danger signal.
To be mounted on the wall or on the ceiling along escape routes, corridors, staircases. Only applicable with addressable detector base.
Power is supplied via FDnet/C-NET, no auxiliary power supply required. Monitoring of device status.
For recess supply line. For surface supply line up to cable 6 mm in diameter with base FDB221, otherwise use the base attachment or the base attachment wet.
The base must be ordered separately.
Key Features of the A5Q00023092 |
|---|
|
> Alarm sounder with supplementary optical indication, orange
> For the automatically addressed detector bus FDnet/C-NET > Alarm sounder with 11 tones to choose from, 2 programmable activation levels > Sound level up to 99 dB(A); can be set on three levels > Optical indication with set flashing sequence, adjustable flashing mode > Supply and communication via FDnet/C-NET > Compatible with addressed detector base > Option of using base accessories and sealing element > Monitoring of device status |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDS229-A |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | Orange |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDS229-A Cerberus PRO Alarm Sounder Beacon 80-99 dBA (Amber) (No Base) (A5Q00023092)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDS229-A Cerberus PRO Alarm Sounder Beacon 80-99 dBA (Amber) (No Base) (A5Q00023092)
| Product: | Siemens Alarm Sounder with Supplementary Optical Indication |
| Product code: | A5Q00023092 |
| Dimensions: |
Ø:100mm x D:43mm |
| Standard: | EN 54-3 , EN 54-17 |
| Operating voltage: | DC 12 - 33V |
| Operating current: | 3.5 mA (sound or optical indication activated) 7 mA (tone and beacon activated) |
| Quiescent current: | 250 μA |
| Sound intensity: |
80 - 99 dB(A) |
| Light intensity: | 1.1 - 2.8 cd |
| No. of flashing pattern: | 1 (intermittent) |
| Terminals: | According to detector base |
| Operating temperature: | -25 to +65 °C |
| Storage temperature: | -30 to +75 °C |
| Protection category: | IP42; IP43 With base and base attachement; IP44 With base and sealing element; IP54 with base attachment wet |
| Relative humidity: | ≤95 % rel. |
| No. of sounds: |
