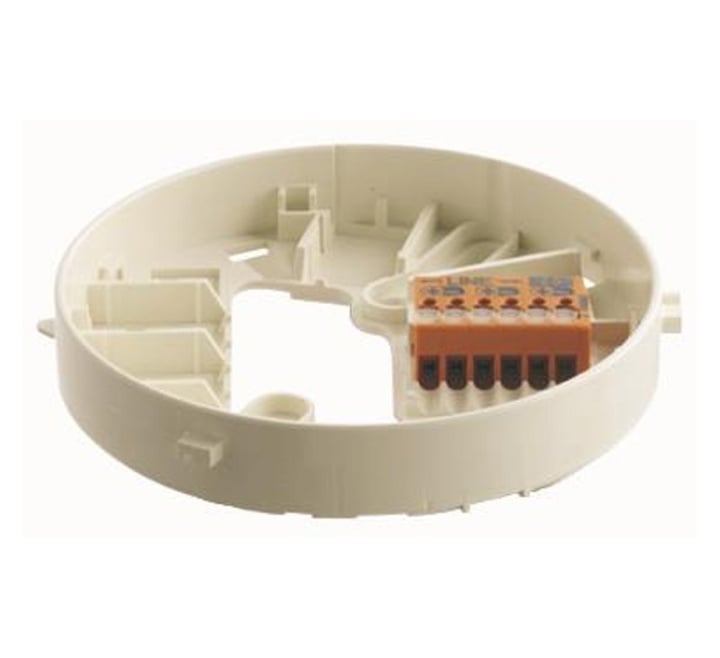

Siemens FDB222 Addressable Base for Loop Powered Sounder & Sounder Beacon (Flat for back entry cable) (S54319-F1-A1)
SKU
S54319-F1-A1
£4.75
£3.96
Siemens FDB222 Addressable Base for Loop Powered Sounder & Sounder Beacon (Flat for back entry cable) (S54319-F1-A1)
In Stock
Product Details for Siemens FDB222 Addressable Base for Loop Powered Sounder & Sounder Beacon (Flat for back entry cable) (S54319-F1-A1)
Siemens FDB222 Addressable Base for Loop Powered Sounder & Sounder Beacon (Flat for back entry cable) (S54319-F1-A1)
Base made from impact-proof and scratch-resistant synthetic material. Large opening in the detector base permits the reuse of existing boreholes from older systems. Screwless connection terminals 'orange'. Space for auxiliary terminals as micro terminals 0.5 mm^2 or connection terminals 2.5 mm^2.
For equipment with addressable signal processing.
For recess supply wiring.
Key Features of the S54319-F1-A1 |
|---|
|
> Flat addressable detector base for fire detectors with addressable signal processing
> 'Orange' connection terminals, 0.2 - 1.5 mm^2 conductor cross-section > For flush mounting; only for recess-mounted cable entry |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDB222 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDB222 Addressable Base for Loop Powered Sounder & Sounder Beacon (Flat for back entry cable) (S54319-F1-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDB222 Addressable Base for Loop Powered Sounder & Sounder Beacon (Flat for back entry cable) (S54319-F1-A1)
| Product: | Siemens Flat Addressable Detector Base |
| Product code: | S54319-F1-A1 |
| Dimensions: |
Dia:100mm x D:22mm |
| Cable capacity: |
0.2 - 1.5 mm2 |
| Colour: | Pure White (RAL 9010) |
