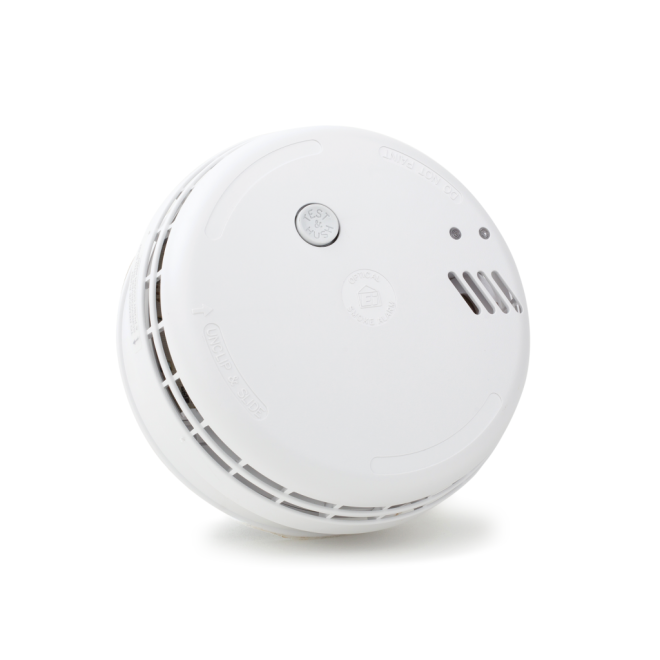

Aico Ei186 12-24v Optical Smoke Alarm with Relay
Discontinued
Product Details for Aico Ei186 12-24v Optical Smoke Alarm with Relay
The Aico Ei186 is a 12-24v low voltage optical smoke alarm, with a 9V alkaline back up battery for continuous operation in the event of a power failure. Optical detectors are ideal for detecting visible smouldering fires, and are suitable for use in hallways, landings and living or dining rooms.
The alarm is supplied with an Easi-fit base, which offers quick, straightforward installation and connects both the mains power and the back up battery to the alarm head. It also has a pair of volt free relay contacts via hard-wired interconnection, plus a built-in mesh screen to reduce the risk of dust and insect contamination. The combined test/hush button facilitates frequent testing and ensures that disruption from false alarms is kept to a minimum.
It is CE marked and kitemarked to BS EN 14604:2005, and has a manufacturer's warranty of 5 years.
Wired Interconnection
The Ei186 can be connected with up to 20 other Aico 180 Series alarms, so that when one alarm is triggered, it will cause all interlinked alarms to sound.
It is compatible with the following products:
Key Features of the Ei186 |
|---|
|
> - Optical smoke detector
- 12-24v variable supply with 9V alkaline battery backup
- Interconnectable with other Aico 180 Series alarms
- Built-in relay
- Test/hush button
- Low battery alerts
- Kitemarked to BS EN 14604:2005 & CE marked
- 5 year warranty
|
| Brand | Aico |
|---|---|
| Manufacturer Part No. | Ei186 |
FAQ’s for Aico Ei186 12-24v Optical Smoke Alarm with Relay
Product Specification for Aico Ei186 12-24v Optical Smoke Alarm with Relay
| Manufacturer: | Aico |
| Product Code: | Ei186 |
| Dimensions: | H:145mm W:145mm D:75mm |
| Product Weight: | 370g |
| Sound Output: | 85dB alarm at 3 metres |
| Power Supply: | Low voltage |
| Supply Voltage: | 10.5 to 30V DC |
| Battery Back Up: | 9V alkaline battery |
| Relay Contacts: | Volt free, Common/NO/NC |
| Operating Temperature Range: | 0°C to +40°C |
| Storage Temperature Range: | 0°C to +35°C (in a dry area) |
| Operating Humidity Range: | 0-90% RH |
| Approvals: | BS EN 14604:2005 CE Marked |
| Manufacturer's Warranty Period: | 5 years |
