Discontinued Product

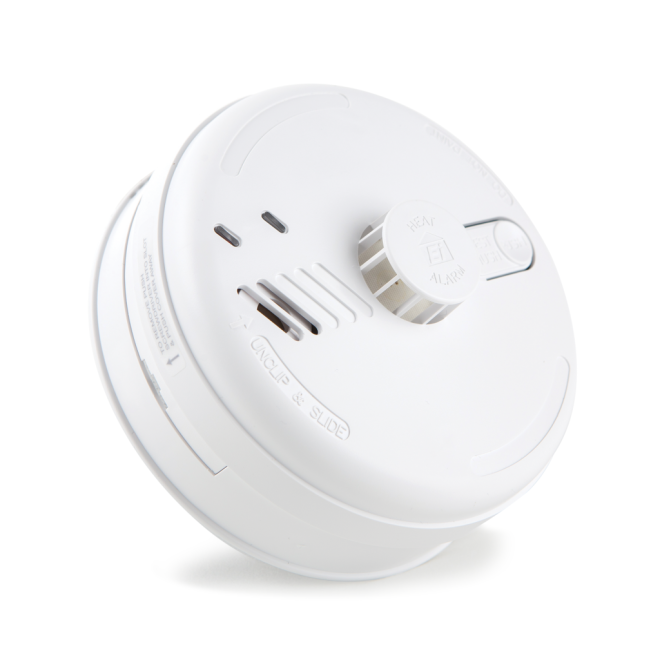

Aico Ei184 12-24v Heat Alarm with Relay
Discontinued
Alternative Products
Product Details for Aico Ei184 12-24v Heat Alarm with Relay
The Aico Ei184 runs on a 12-24v variable power supply, with a 9V alkaline back up battery for continuous operation in the event of a power failure. Ideal for installation in areas where smoke alarms would not be appropriate, for example kitchens or garages, this product features a fixed temperature fast response thermistor type sensor which triggers at 58°C ± 4°C.
The alarm is supplied with an Easi-fit base, which offers quick, straightforward installation and connects both the mains power and the back up battery to the alarm head. It also has a pair of volt free relay contacts via hard-wired interconnection, plus a combined test/hush button that facilitates frequent testing and ensures that disruption from false alarms is kept to a minumum.
It is CE marked and kitemarked to BS 5446 Part 2:2003, and has a manufacturer's warranty of 5 years.
Wired Interconnection
The Ei184 can be connected with up to 20 other Aico 180 Series alarms, so that when one alarm is triggered, it will cause all interlinked alarms to sound.
It is compatible with the following products:
Key Features of the Ei184 |
|---|
|
> - Thermistor type heat sensor
- 12-24v variable supply with 9V alkaline battery backup
- Interconnectable with other Aico 180 Series alarms
- Built-in relay
- Test/hush button
- Low battery alerts
- Kitemarked to BS 5446-2:2003 & CE marked
- 5 year warranty
|
| Brand | Aico |
|---|---|
| Manufacturer Part No. | Ei184 |
| Warranty | 5 Years |
| Colour | White |
| Interlink Options | Hard-wire Interlink Only |
| Detectable Medium | Heat |
| Sensor Type | Thermistor |
FAQ’s for Aico Ei184 12-24v Heat Alarm with Relay
Product Specification for Aico Ei184 12-24v Heat Alarm with Relay
| Manufacturer: | Aico |
| Product Code: | Ei184 |
| Dimensions: | H:145mm W:145mm D:65mm |
| Product Weight: | 363g |
| Sound Output: | 85dB alarm at 3 metres |
| Power Supply: | Low Voltage |
| Supply Voltage: | 10.5 to 30V DC |
| Battery Back Up: | 9V alkaline battery |
| Relay Contacts: | Volt free, Common/NO/NC |
| Operating Temperature Range: | 0°C to +40°C |
| Storage Temperature Range: | 0°C to +35°C (in a dry area) |
| Operating Humidity Range: | 0-90% RH |
| Approvals: | BS 5446-2:2003 CE Marked |
| Manufacturer's Warranty Period: | 5 years |
