Discontinued Product
Aico Ei181 12-24v Ionisation Smoke Alarm with Relay
Discontinued

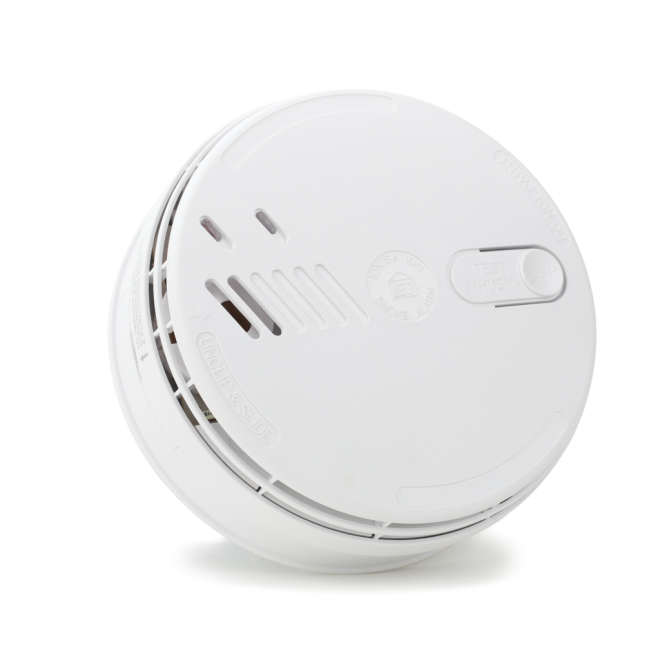

Product Details for Aico Ei181 12-24v Ionisation Smoke Alarm with Relay
The Aico Ei181 is a low variable voltage (12-24v) ionisation smoke alarm, with a 9V alkaline backup battery for continuous operation in the event of a power failure. Ionisation detectors are ideal for detecting fast flaming fires, and are particularly suitable for use in bedrooms.
The alarm is supplied with an Easi-fit base, which offers quick, straightforward installation and connects both the mains power and the backup battery to the alarm head. It also has a pair of volt-free relay contacts via hard-wired interconnection, plus a combined test/hush button that facilitates frequent testing and ensures that disruption from false alarms is kept to a minimum.
It is CE marked and kitemarked to BS EN 14604:2005, and has a manufacturer's warranty of 5 years.
Wired Interconnection
The Ei181 can be connected with up to 20 other Aico 180 Series alarms, so that when one alarm is triggered, it will cause all interlinked alarms to sound.
It is compatible with the following products:
Key Features of the Ei181 |
|---|
|
> - Ionisation smoke detector
- 12-24v variable supply with 9V alkaline battery backup
- Interconnectable with other Aico 180 Series alarms
- Built-in relay
- Test/hush button
- Low battery alerts
- Kitemarked to BS EN 14604:2005 & CE marked
- 5 year warranty
|
| Brand | Aico |
|---|---|
| Manufacturer Part No. | Ei181 |
FAQ’s for Aico Ei181 12-24v Ionisation Smoke Alarm with Relay
Product Specification for Aico Ei181 12-24v Ionisation Smoke Alarm with Relay
| Manufacturer: | Aico |
| Product Code: | Ei181 |
| Dimensions: | H:145mm W:145mm D:55mm |
| Product Weight: | 380g |
| Sound Output: | 85dB alarm at 3 metres |
| Power Supply: | Low variable voltage |
| Supply Voltage: | 10.5 to 30V DC |
| Battery Back Up: | 9V alkaline battery |
| Relay Contacts: | Volt free, Common/NO/NC |
| Operating Temperature Range: | 0°C to +40°C |
| Storage Temperature Range: | 0°C to +35°C (in a dry area) |
| Operating Humidity Range: | 0-90% RH |
| Approvals: | BS EN 14604:2005 CE Marked |
| Manufacturer's Warranty Period: | 5 years |
