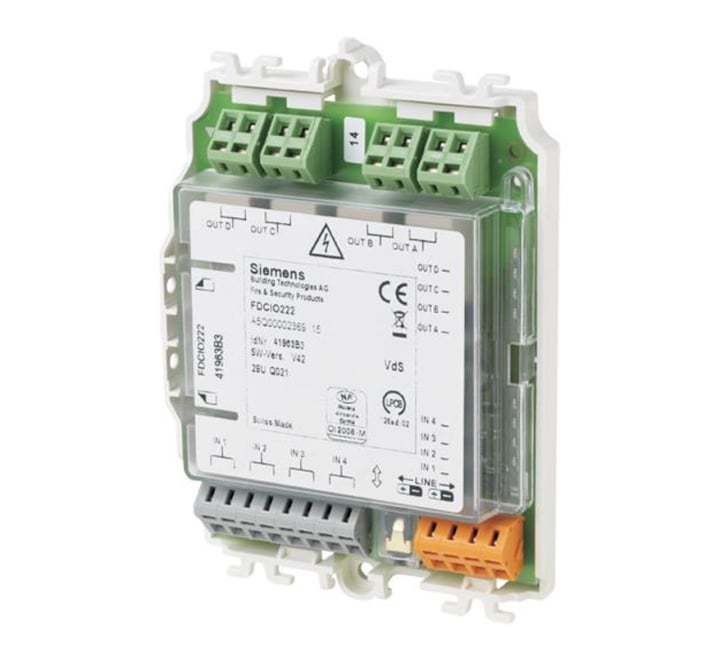

Siemens FDCIO222 Cerberus PRO 4 Way Input/Output Module (Switches up to 240V AC) (A5Q00002369)
SKU
A5Q00002369
£131.54
£109.62
Siemens FDCIO222 Cerberus PRO 4 Way Input/Output Module (Switches up to 240V AC) (A5Q00002369)
In Stock
Product Details for Siemens FDCIO222 Cerberus PRO 4 Way Input/Output Module (Switches up to 240V AC) (A5Q00002369)
The Siemens FDCIO222 Cerberus PRO 4-Way Input / 4-Way Output Module is for the connection of 4 independent, potential-free, make-or-break contacts for the indication of technical states (e.g. door or ventilation control) or for alarm actuation (e.g. sprinkler alarm).
4 inputs for potential-free contacts. Input lines are monitored for open line and short-circuit (termination resistors). Inputs can be independently configured via the fire control panel for status or alarm messages.
4 outputs with 4 potential-free relay contacts (AC 250 V / 4 A) for fire control installations.
Status indication by LED. Power supply via FDnet/C-NET. Input/output module incl. 8 resistors and 2 mounting feet for TS35 U-rail.
Key Features of the A5Q00002369 |
|---|
|
> Input module and input/output modules for the automatically addressed detector line Fdnet/C-NET
> 4 control outputs with potential-free relay contacts for activation of fire doors, fans, air conditioning systems, lift controls, etc. > 4 monitored contact inputs for confirming technical statuses or activating an Alarm > Transparent housing, ensuring that indicators are easy to see > Protected electronics > Integrated line separator > Chronological status monitoring > Supply via FDnet/C-NET, auxiliary supply only required if the output is configured as monitored > Easy mounting using snap fastener > Microprocessor-controlled signal processing > Different mounting options > For dry areas > Use additional housing FDCH221 for dusty and humid environments |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDCIO222 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDCIO222 Cerberus PRO 4 Way Input/Output Module (Switches up to 240V AC) (A5Q00002369)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDCIO222 Cerberus PRO 4 Way Input/Output Module (Switches up to 240V AC) (A5Q00002369)
| Product: | Siemens 4-Way Input/Output Module |
| Product code: | A5Q00002369 |
| Dimensions: |
W:130mm x H:90mm x D:20mm |
| Standard: | CEA GEI I-084 , EN 54-17 , EN 54-18 |
| Operating voltage: | DC12 - 33V |
| Operating temperature: | -25 to +70oC |
| Storage temperature: | -30 to +65oC |
| Cable capacity: | 0.2 - 1.5mm2 (2.5mm2) |
| System compatibility: | FDnet -> FS20, AlgoRex, SIGMASYS C-NET -> FS720 |
| Communication protocol: | FDnet/C-NET |
| Quiescent current: | Max. 0.6 - 0.75 mA |
| Relay output (volt-free): | AC 250 V, 4 A, max. 1000 VA DC 30 V, 4 A, max. 120 W |
| Relative humidity: | ≤95 % rel. |
| Colour: | Pure White (RAL9010) |
| Protection category: | IP30; IP65 with ext. housing |
