Siemens FC361-ZZ Cerberus 360 1 Loop Compact Fire Panel (No Zonal LEDs) (S54433-C112-A1)
SKU
S54433-C112-A1
£467.87
£389.89
Siemens FC361-ZZ Cerberus 360 1 Loop Compact Fire Panel (No Zonal LEDs) (S54433-C112-A1)
- Buy 10 for £458.69 £382.24 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FC361-ZZ Cerberus 360 1 Loop Compact Fire Panel (No Zonal LEDs) (S54433-C112-A1)

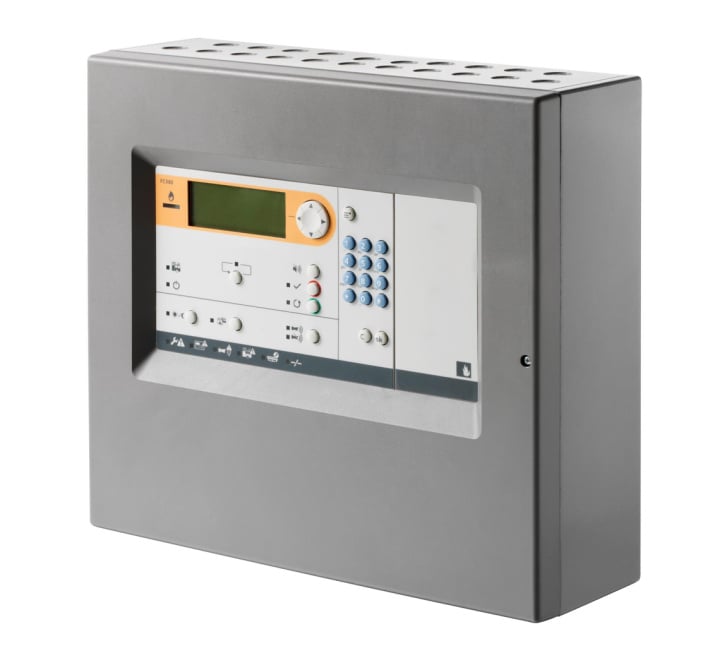

The Siemens Cerberus FIT FC361-ZZ is a fire control panel (1-loop) to which up to 126 addressed fire detectors and other peripheral devices can be connected.
The control panel has a slim, compact housing for 2x 12 V, 12 Ah batteries and is ideally suited to smaller fire detection installations, such as the kind used in workshops, smaller hotels, schools, stores, residential homes, and so on.
The integrated 'Panel Configurator' enables the configuration to be changed quickly and easily on a PC/laptop, without the need for additional software. Accessories and extensions must be ordered separately.
Key Features of the S54433-C112-A1 |
|---|
|
> Two collective horn lines
> Three freely programmable relay outputs > Four freely programmable control inputs/outputs > Optional RS232 module for printer connection > Optional RS485 module for ESPA pager module or DMS > Optional module with four freely configurable monitored outputs > Integrated web-server-based 'FC360 Panel Configurator' software, access via Ethernet connection (port) > Installation space for optional components: LED indicator (32 zones), Key switch (standard) or key switch (Nordic), Evacuation module (NL) > Emergency power supply for emergency operating time of up to 72 hours |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FC361-ZZ |
| Product Series | Cerberus 360 |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 1 |
| Max No. of Loops Possible | 1 |
| Number of Zones | 32 |
| Protocol Compatibility | Siemens Cerberus |
| Colour | Grey |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FC361-ZZ Cerberus 360 1 Loop Compact Fire Panel (No Zonal LEDs) (S54433-C112-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FC361-ZZ Cerberus 360 1 Loop Compact Fire Panel (No Zonal LEDs) (S54433-C112-A1)
| Standard | EN 54-2 , EN 54-4 , EN 54-13 |
| Number of addresses | 126 |
| Number of detector lines | Loops: 1 Stub lines: 2 |
| Programmable input/output | 4 |
| Mains voltage | AC 97...127 V AC 196...253 V |
| Operating voltage | DC 20.5…28.6 V |
| Operating current | 2500 mA |
| Power supply | 70 W |
| Bypass time for emergency power supply | 72 h |
| Plug-in position | 1 for serial interface RS232 or RS485 |
| Operating temperature | -5…40 °C |
| Storage temperature | -20...+60 °C |
| Relative humidity | ≤95% rel. (no condensation) |
| Protection category | IP30 |
| Color housing/cover | Light grey, ~RAL 7035 |
| Weight (net) | 6.32 kg |
