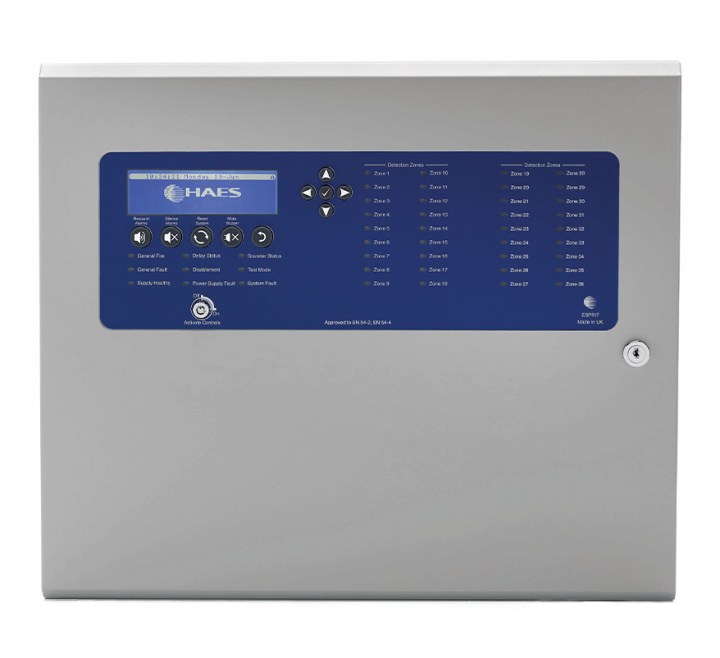

HAES Esprit 1-4 Loop Addressable Fire Panel (Argus Protocol) (ESA-1002)
Product Details for HAES Esprit 1-4 Loop Addressable Fire Panel (Argus Protocol) (ESA-1002)
The HAES Esprit 1 - 4 loop analogue addressable control panels have been developed to provide a simple-to-use and cost-effective, robust solution for the intelligent fire systems market.
Expandable up to four loop circuits, and with up to 240 addresses per loop when using Soteria devices, the control panels' compact styling and programming power makes it ideal for all small and medium site requirements.
The large graphical display with easy to navigate menus provides fast and simple setup and maintenance.
Esprit-A panels support the full range of Argus protocol (Hyfire) devices including their range of wireless accessories.
The panels are supplied with a 3.4Amp internal switch mode power supply module.
Esprit-A panels are approved to European standards; EN54-2 & EN54-4.
Key Features of the ESA-1002 |
|---|
|
> One to four loops
> 2 programmable sounder circuits > Large graphical display > 255 date and time stamped event logs > Auto-learn function > 240 devices per loop > False alarm management > Programmable company logo > Delays to outputs > 64 programmable groups > 36 zonal LEDs > 3.4A integral PSU > Approved to EN54-2 & EN54-4 > Robust metal enclosure |
| Brand | HAES Technologies |
|---|---|
| Manufacturer Part No. | ESA-1002 |
| Product Series | Esprit-A |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 1 |
| Max No. of Loops Possible | 4 |
| Protocol Compatibility | Argus Vega |
| Colour | Grey |
| Warranty | 3 Years |
FAQ’s for HAES Esprit 1-4 Loop Addressable Fire Panel (Argus Protocol) (ESA-1002)
Product Specification for HAES Esprit 1-4 Loop Addressable Fire Panel (Argus Protocol) (ESA-1002)
| Enclosure | 1.2mm Mild Steel IP30. Colour ref MW334E Interpon Powder coat |
| Cable entry | Via 20mm knockouts located in the top and rear of the cabinet |
| Dimensions | Back box: 450 W x 385 H x 100 D (mm), Lid: 463 W x 394 H x 25 D (mm) |
| Mains supply | Universal switch mode PSU, 230Vac ± 10% 50Hz, 1.2A input current |
| Battery capacity | Up to 18 Ah 24V, Fire retardant |
| Charger current | 1.2A |
| Auxiliary supply | 400mA, 28V |
| Loop | Argus Protocol. Up to 4 loops. Each loop - 500mA, Cable length - 1km max |
| Sounder circuits | 2 x 400mA 28V DC |
| Switch inputs | CC, PULS |
| Event log | 255 events, time & date stamped |
| Earth fault monitoring | Yes |
| Display | 240 x 64 Graphical LCD backlit |
