HAES Esprit Addressable Panel Network Communication Card (ESA-3002)
SKU
ESA-3002
£142.69
£118.91
HAES Esprit Addressable Panel Network Communication Card (ESA-3002)
In Stock
Product Details for HAES Esprit Addressable Panel Network Communication Card (ESA-3002)

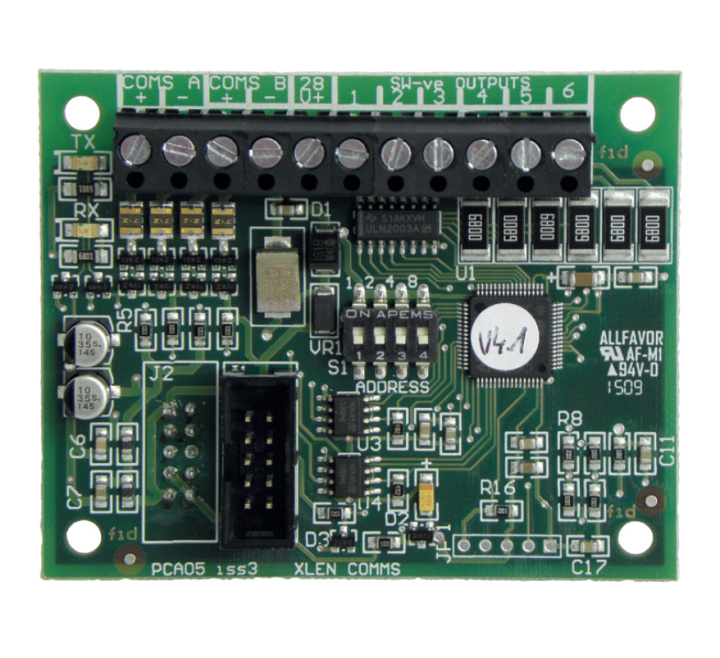

The HAES ESA-3002 is a simple plug-in Network Communication Card for Esprit addressable fire panels which allows networking of up to 8 control or repeater panels. Supports fully fault-tolerant network or legacy radial circuit wiring. Includes 6 x programmable outputs.
Key Features of the ESA-3002 |
|---|
|
> Simple plug-in communication card
> Allows networking of up to 8 control panels > Add up to 8 repeater panels or remote display units to the network > 2 core cable between cards > Fully monitored fault-tolerant network or legacy radial circuit wiring > Includes 6 x programmable outputs |
| Brand | HAES Technologies |
|---|---|
| Manufacturer Part No. | ESA-3002 |
| Product Series | Esprit-A |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol, Argus Vega |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for HAES Esprit Addressable Panel Network Communication Card (ESA-3002)
No questions yet. Be the first to ask the question!
Product Specification for HAES Esprit Addressable Panel Network Communication Card (ESA-3002)
| Standby Current | 5.2mA |
| Cable Requirements | 2 core 1.0mm (min) fire rated cable |
| Comms A - B | RS485 comms, fused @ 20mA |
| Supply Output | 28v, fused @ 500mA |
| Outputs | 6 x programmable switch -ve, max load = 40mA |
