Ziton ZP7 Addressable Manual Call Point (ZP886R)
In Stock
Product Details for Ziton ZP7 Addressable Manual Call Point (ZP886R)

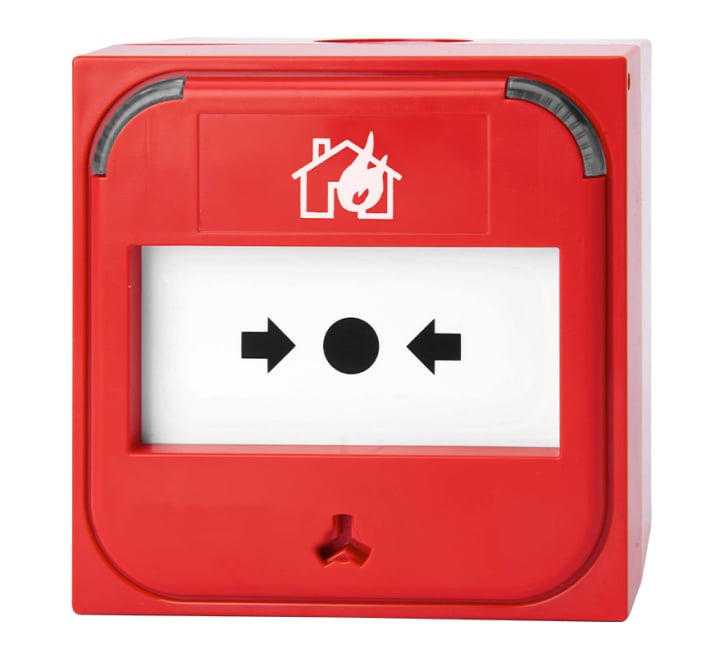

The Ziton ZP886R is a red, single-action indoor addressable manual call point. It is delivered complete with resettable element, test connector and test key. Multiple optional accessories are available to facilitate most indoor installation requirements.
This single-action MCP is a standard profile, indoor MCP suitable for surface and recess mount installations using standard or legacy European electrical boxes. With its designer dual, tricolour LEDs it offers 180°, clear local indication of its operational status, even from a side view in a passage installation. The clean face of the MCP is further enhanced by a front access and test key facility.
Compatibility
The ZP880 range may be used on compatible Ziton fire systems. They can be deployed seamlessly into existing legacy systems without CIE configuration changes.
Installation and maintenance friendly
The front-facing access for an aesthetically matching test key allows unhindered access regardless of the installation location. The MCP key doubles as a test and disassembly tool allowing removal of the MCP front cover without the need for additional tools.
Key Features of the ZP886R |
|---|
|
> Red, single action
> Reliable single action manual call point for surface and flush mounting > Dual, tri-colour status indicators offers 180° alarm visibility > Tamper resistant design with resettable or frangible element > Unobtrusive front facing test facility > Standard mounting options facilitates easy retrofitting to existing installations > Matching back box with rear, top and bottom cable entry > Screen connection terminal for electrically noisy installations > Pluggable connector with link through facility for ease of installation and pre-commissioning testing > An alarm flag on the face of the manual call point allows alarm indication even without alarm LEDs > Fast, no-tools-required maintenance using the test key > Up to 127 devices per loop |
| Brand | Ziton |
|---|---|
| Manufacturer Part No. | ZP886R |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Ziton |
| Colour | Red |
| Warranty | 2 Years |
FAQ’s for Ziton ZP7 Addressable Manual Call Point (ZP886R)
Product Specification for Ziton ZP7 Addressable Manual Call Point (ZP886R)
| Code: | ZP886R |
| Description: | Ziton ZP7 Series intelligent addressable manual call point |
| Compatible products: | N-MC-AFM-R: Intelligent MCP accessory, flush mount adaptor, red N-MC-BB-R: MCP accessory, intelligent manual call point back box, red N-MC-FC: MCP accessory, intelligent Manual Call Point flip cover N-MC-RE: MCP accessory, intelligent Manual Call Point resettable element N-MC-S-R: Intelligent MCP accessory - trim skirt - red |
| Dimensions: | W:87 x H:87 x D:26 mm (w/o back box) W:87 x H:87 x D:57 mm (w/ back box) |
| Status indication: | Dual LEDs, Alarm (red constant), Isolated (yellow constant), Fault (yellow blinking), Communication (green blinking) |
| User interface: | LEDs, Alarm flag |
| Compatibility: | Ziton ZP7 systems |
| Addressing method: | DIP switches |
| Power supply: | Loop powered |
| Operating & communicating voltage: | 16 to 20 V |
| Current consumption: | 250µA (quiescent) 280µA (alarm) |
| Cable specification: |
0.404 to 2.05 mm (0.13 to 3.31 mm²) |
| No. of cable cores: | 2 |
| Terminals: | 4 (A+/A-;B+/B-) |
| Detection: | Principle: Push button/switch Monitoring: Activated, Fault, Off Response time: <3s Installation height: Determined by local regulation |
| Vandal proof: | No |
| Operating temperature: | -25 to +72°C |
| Storage temperature: | -25 to +72°C |
| Relative humidity: | 10 to 95% non-condensing |
| IP rating: | IP41, indoor |
| Functional marking: | House on fire |
| Fixing centres: | 60 mm |
| Material (body): | Flame retardent ABS |
| Mounting: |
Back box, Recessed mount, Wall mount |
| Colour: | Red (RAL 3028) |
| Regulatory: | CE, REACH, RoHS 3, WEEE compliant CPR, APPLUS certification EN54:11 standard |
| Weight: | 110 g (w/o back box) 165 g (w/ back box) |
